Say goodbye to traditional cumbersome processes and use
rapid prototyping to improve the efficiency of dental treatment.

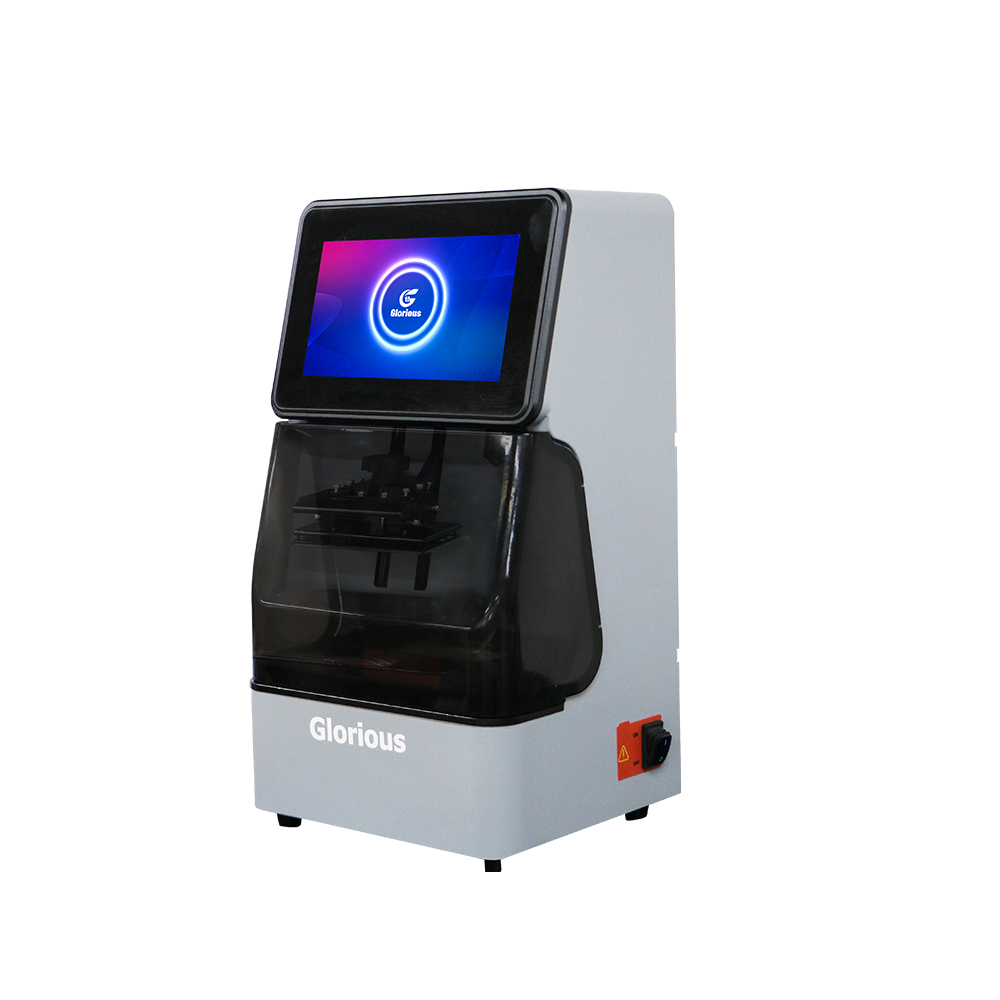

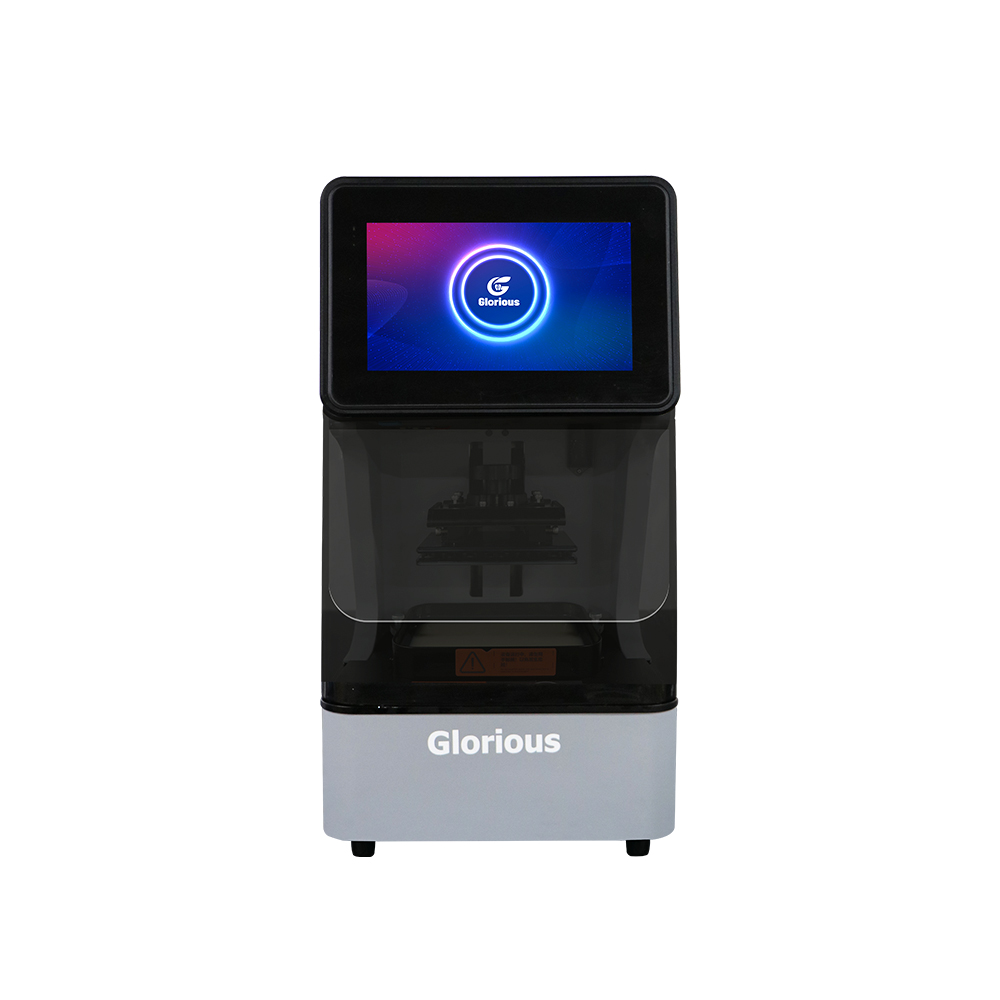

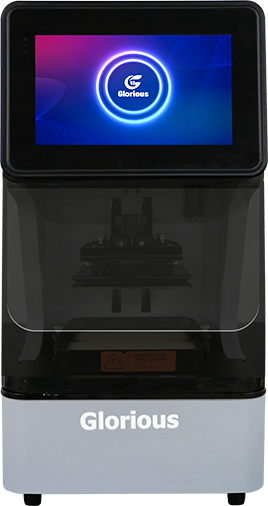

Dental 3D Printer
4K
Higher | Faster | Easier
LIGHT CURING PICTURE
STACKING MOLDING
Say goodbye to traditional cumbersome processes and use
rapid prototyping to improve the efficiency of dental treatment.
Print layer thickness Print speed(peak) Printing accuracy
0.025-0.1mm 50mm/h 0.03mm
Intelligent Detail Design
Improve Printing Experience
PRINTING PURPOSE

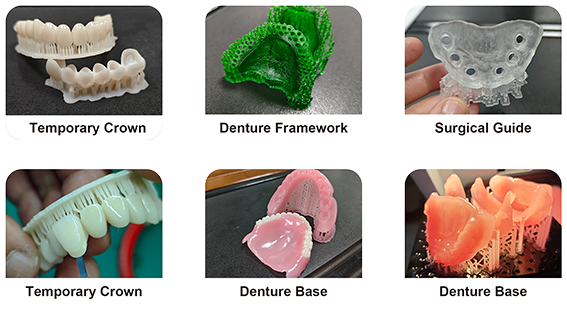

Supported materials: Glorious full range of resins,restoration
models, orthodontic models, internal and external crown wax-ups,
veneer wax-ups, guides, gums, temporary crowns, etc.
INTELLIGENT SOFTWARE
One-click fully automated process slicing
From processing to storage, a single implant surgical guide
only takes 7.13s, and 16 dental molds only take 44.25s.
Product Parameters
Fastest printing speed 80/h | Print speed 50/h | Rated voltage 220v |
Print layer thickness 0.025-0.1mm | Printing accuracy 0.03mm | Product Net Weight 17kg |
Packing size 380*370*630mm | Product size 300*270*570mm | Print size(X.Y,Z) 141.75*88.8*100mm |
Printing method Light-curing image stacking | Slicing software CHITUBOX VlareSlicer | |
Print screen 6.6 inch 4k black and white screen | Machine Support Format ctb,osf | |
Leveling method One-time leveling for lifelong use | Interface language Chinese/English | |
Connection method WiFi, network cable transmission, USB storage | ||
Printing platform 7-inch aviation aluminum printing platform |
