Customization is available
Supports multiple powder printing
Bottom powder structure
Remote monitor

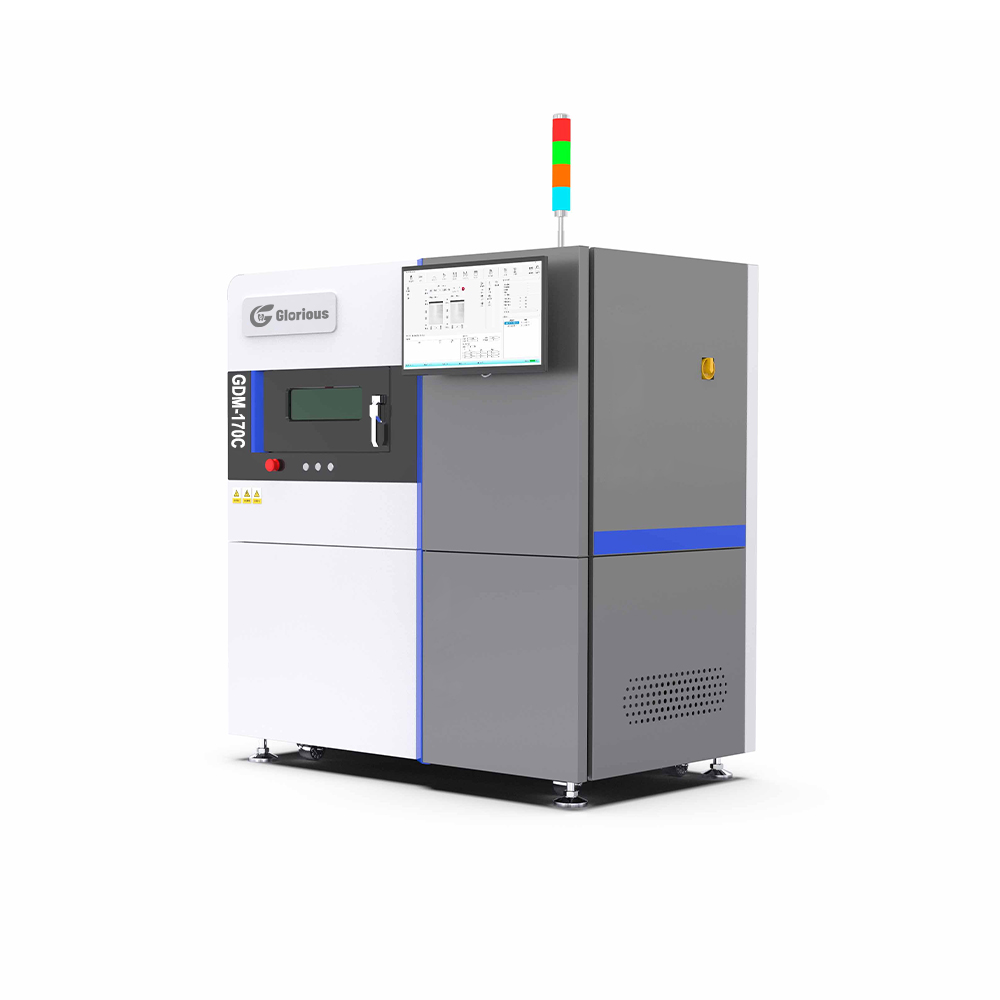

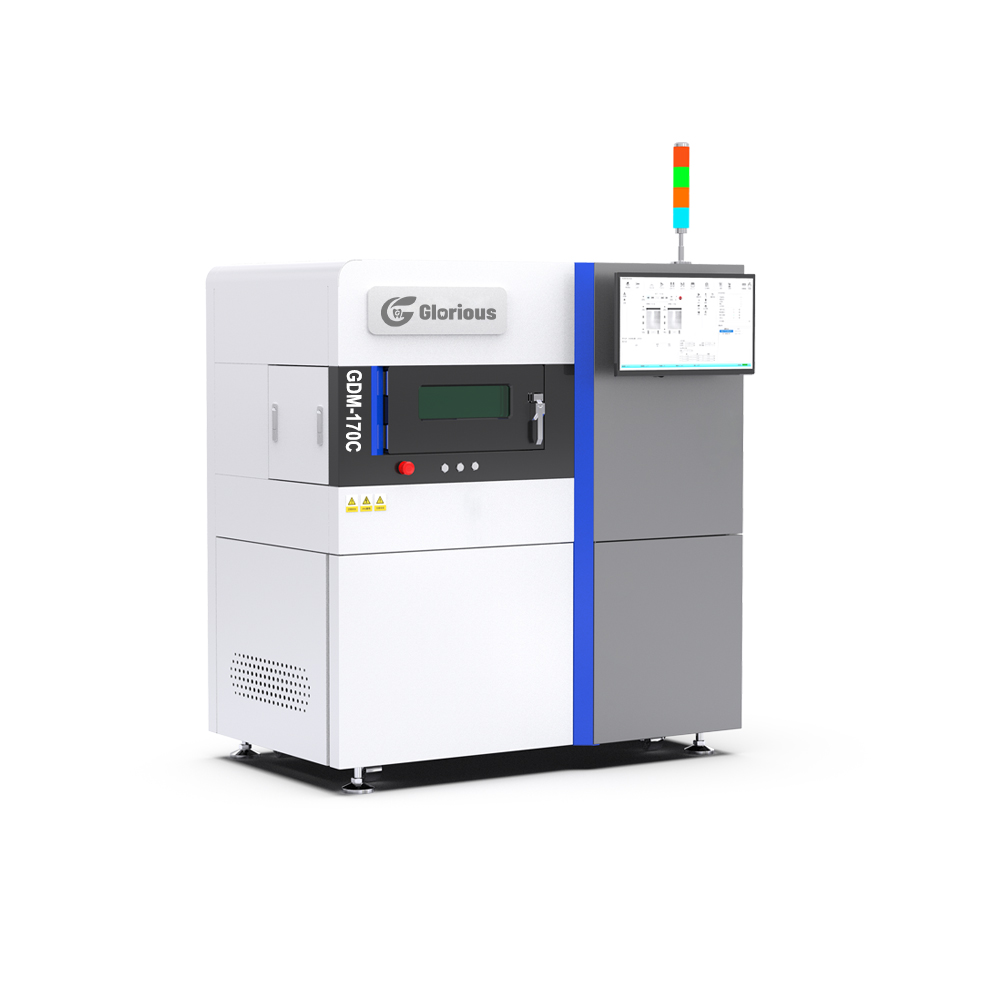

GDM-170C 3D Metal Printer
√Customization is available
√Supports multiple powder printing
√Bottom powder structure
√Remote monitor
Parameter intelligent module:
Standard configuration: process intelligent diagnosis, real-time data traceability,3D reconstruction of parts
Optional configuration:powder laying monitoring function, real-time status monitoring, automatic grafting function, MT-PLM system,Avimetal-Control interface
Laser power 500W | Power supply type Single phase 220V | Number of lasers Single laser/dual laser | Maximum scanning speed 7m/s |
Gas support Ar/N2 | Molding efficiency① 25cm/h;50cm/h | Focusing system F-theta field lens | Average power consumption 7KW;9KW |

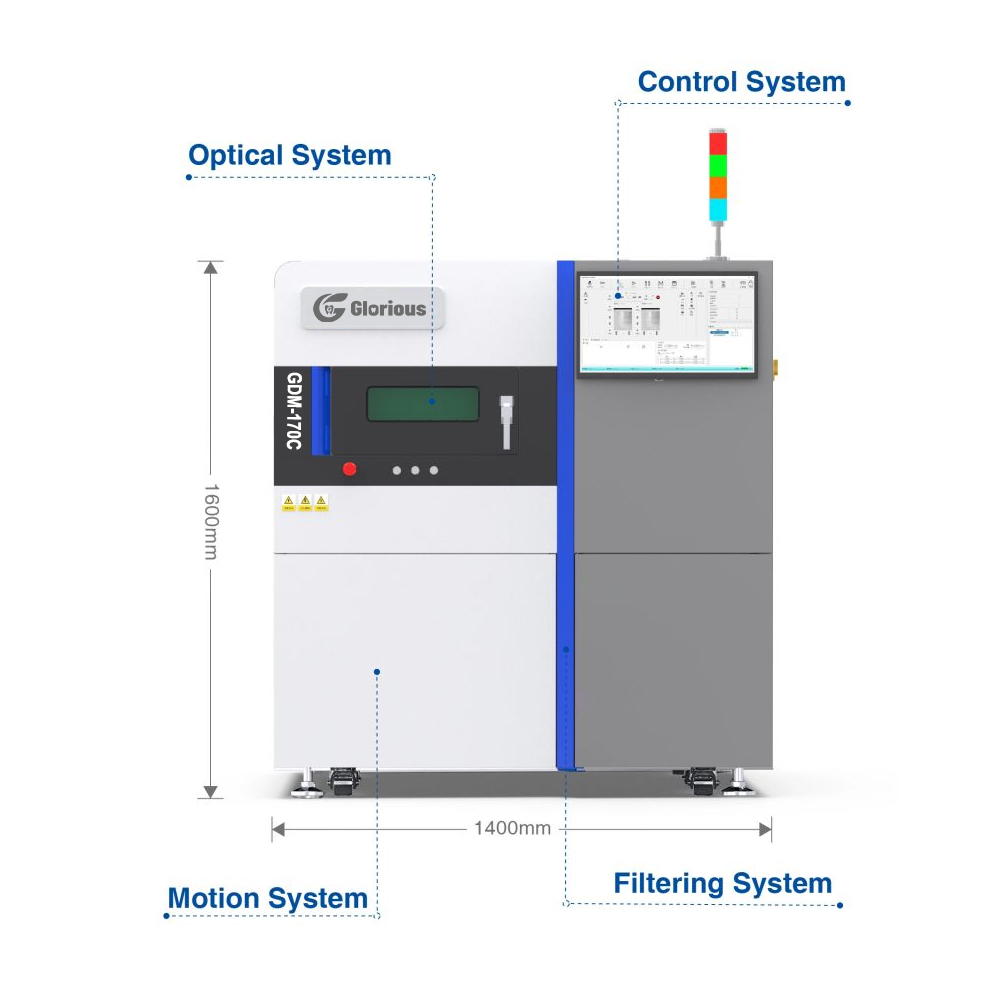

Beam quality M²<1.1 | Working oxygen content ≤100ppm | Equipment weight About 700kg | Host size 1400x800x1600mm(WxDxH) |
Spot size 40-80μm | Powder layer thickness 20~100um | Powder spreading method bottom powder | Installation dimensions 3200x2400x2180mm(WxDxH) |
Scanning system High-precision scanning galvanometer | Powder spreading mechanism One-way variable speed powder spreading | ||
Forming size② Φ170mmx120mm (diameter xheight) | Compatible with multiple scraper types Rubber, brush, high-speed steel, ceramic, etc. | ||

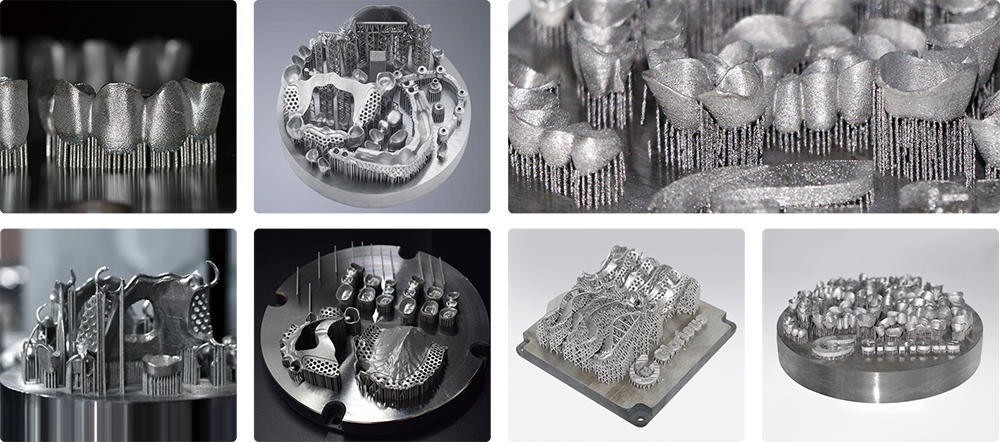

Printable materials Cobalt-chromium alloy, titanium and titanium alloy, refractory metals, intermetallic compounds, etc. | |||
①: The forming efficiency will vary depending on the equipment configuration, process parameters and laser working status
②: Excluding the thickness of the forming substrate
Product Advantages
√ High cost performance √ Modular compact design √ Real-time monitoring
High quality laser machine with high Smooth use process and convenient Real-time record output,
cost performance maintenance self-diagnosis
√ Supports multiple powders √ Personalized customization √ Parameters are all open source
High quality laser machine with high Provide customized services such as small Laser power, scanning speed, etc.
cost performance light spots according to customer needs are open and adjustable
Fixed bridge and movable bracket in one step:
