Dental 3D Scanner

Home / Products / Dental 3D Scanner / Glorious Dental 3D Scanner

  • dental 3d scanner

  • dental desktop scanner

  • dental scanner

  • cad cam scanner

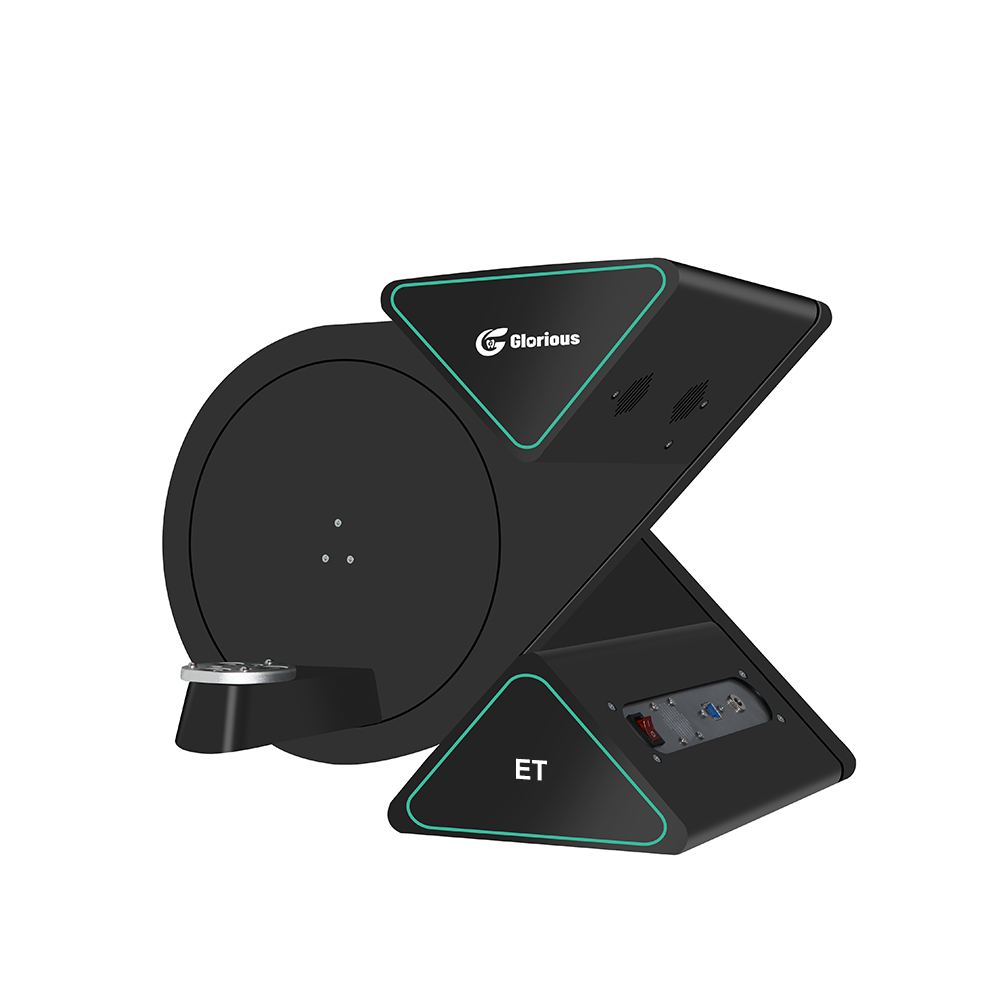

Glorious Dental 3D Scanner

Model: ET

3D scanning technology opens the era of digital

medical diagnosis and treatment



DENTAL 3D SCANNER

Dental desktop scanner · Dental lab scanner · Dental CAD CAM scanner

Model: ET



dental 3d scanner.png



Product  Introduction

▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔

The scanbox is a fully automated,open 3D dental scanner from smartoptics. The scanBox is supplied withoutCAD software and can be used with every open CAD software. Alternatively, the scanBox is available in a package with the exocad CAD software -ideal for a start in CAD.






Product Advantages

▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔



cad cam scanner



  Blue Light Scanning

  Using advanced blue light booth technology Highlighting features and providing high-quality model 3D technology


※※※※※※※※※










dental 3D scanner




  High Efficiency

 Using area array structured light technology, fast scanning speed and high efficiency

 A large number of algorithms areaccelerated using graphics cards toensure computing speed.


※※※※※※※※※













  More Details

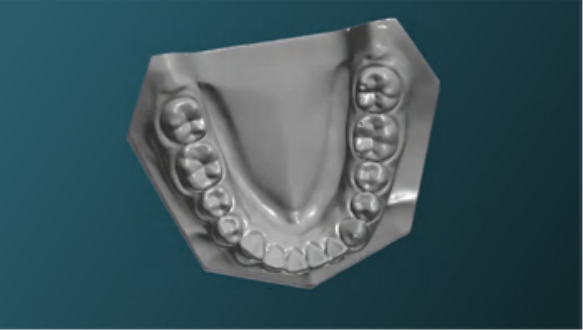

  Advanced post-processing algorithms ensure data effects.



※※※※※※※※※














  Fully Automatic

  Fully automatic turntable, simple operation process, 3D scanning ofmodel with one click






※※※※※※※※※






Scan Type

▔▔▔▔▔▔▔▔▔▔▔▔▔▔




High Precision

Guaranteed high precision and high resolution

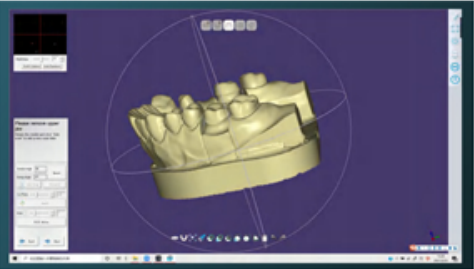

Open System

Open scanning system, providing standardSTL data interface, supportingvarious open design software



Technical parameters

▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔


ET technical parameters
Product modelET
Scanning technologyDouble-sided grating
Camera resolution1.3 million pixels
Scan range100mm*100mm*75mm
Measurement accuracy<0.010mm
Scan time

Full jaw 12 seconds


Upper / lower jaw 20 seconds


Abutment teeth 30 seconds


Impression model 2min

size480mm*236mm*290mm
weight12KG
Operating temperature0-40℃
power supply24v DC

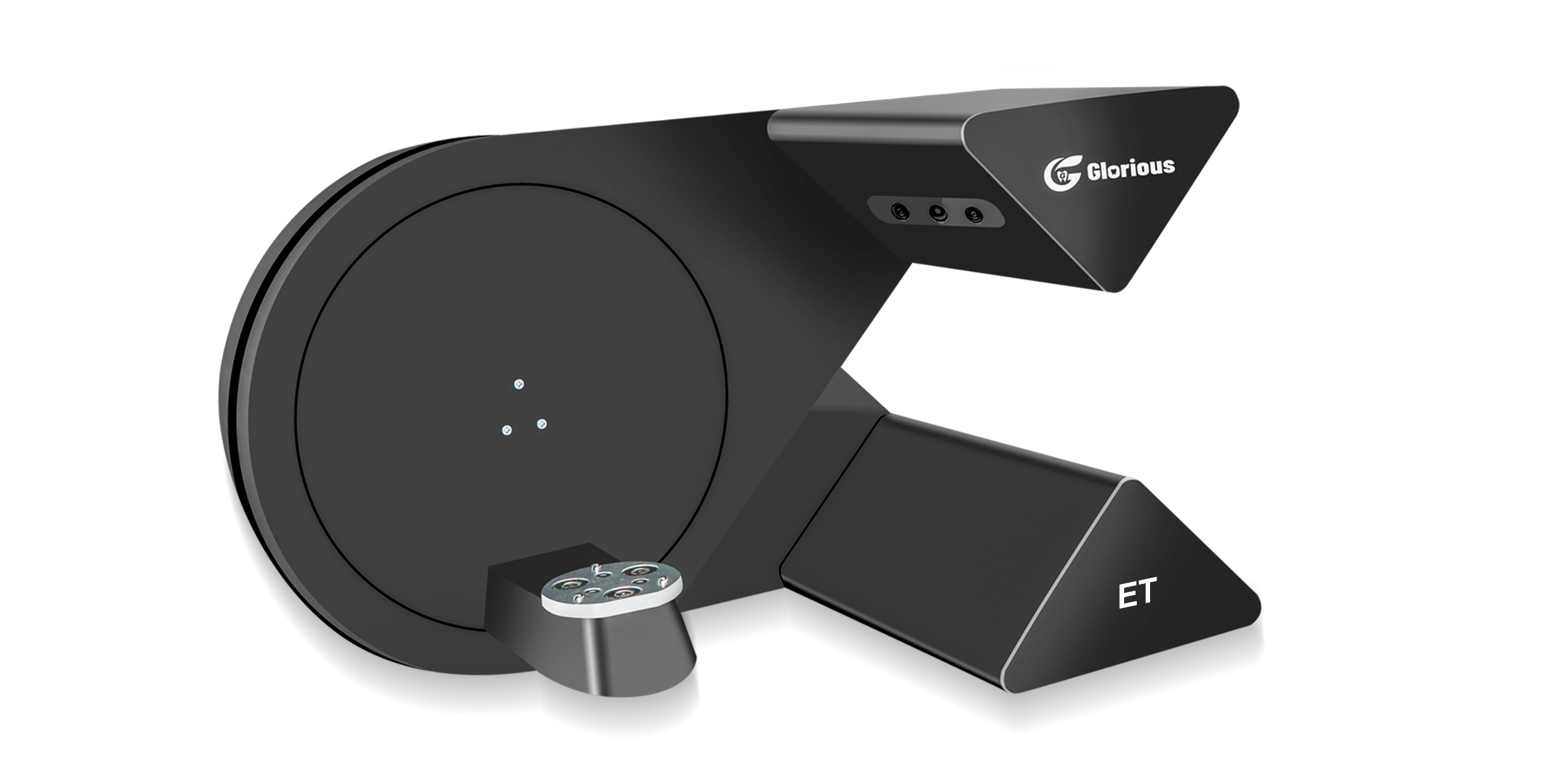

Product Display

▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔

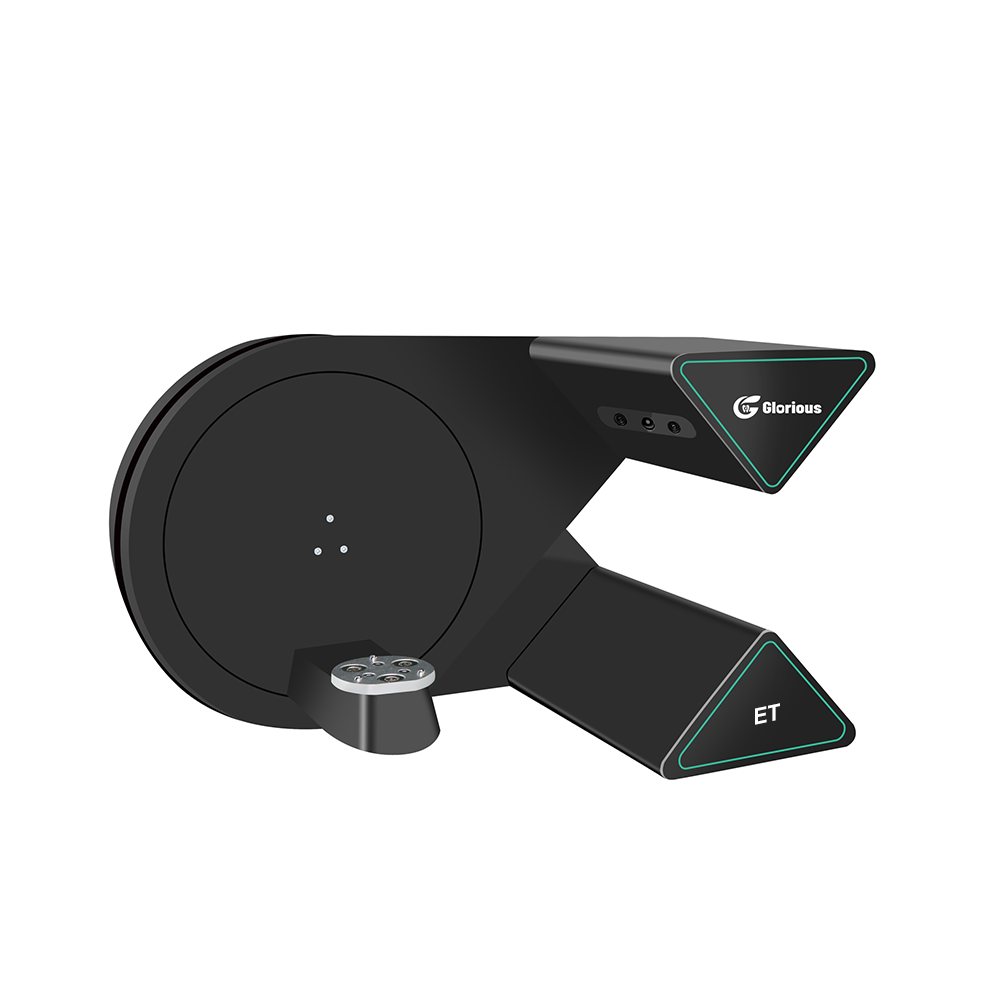

dental lab scanner.png
