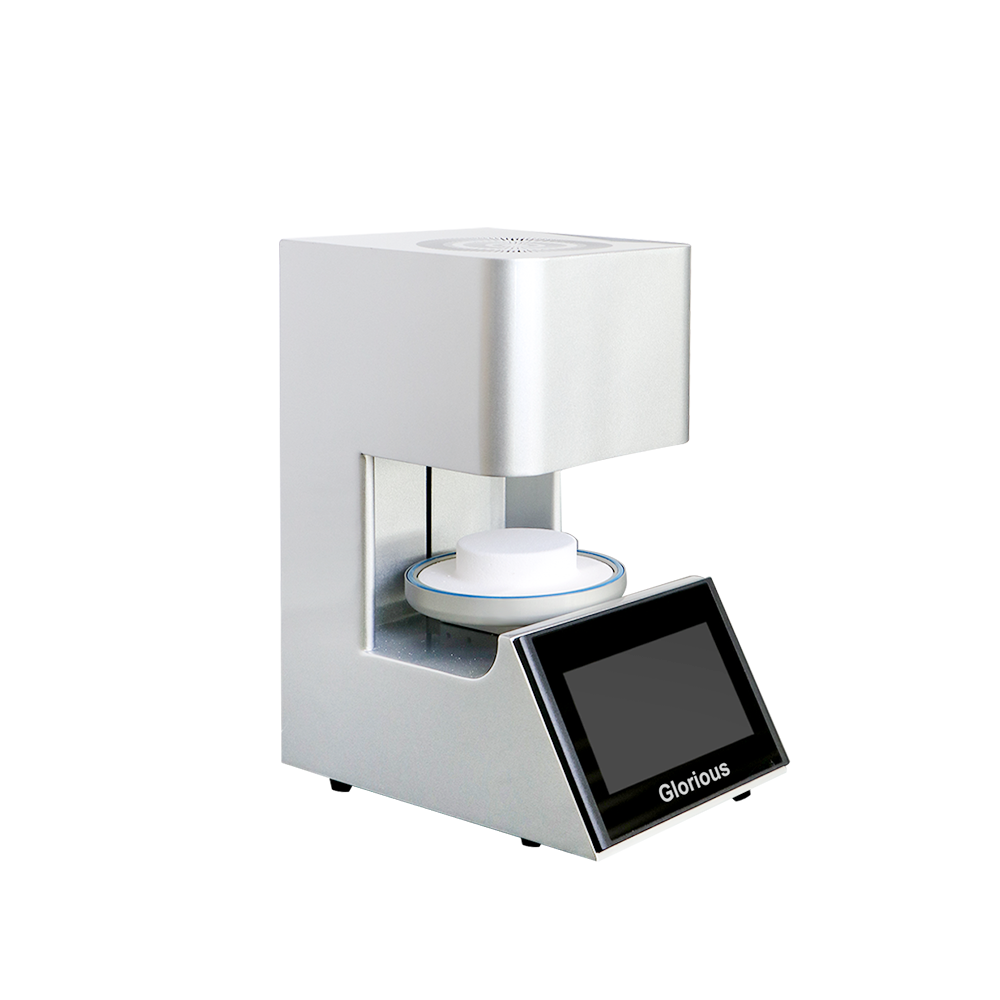

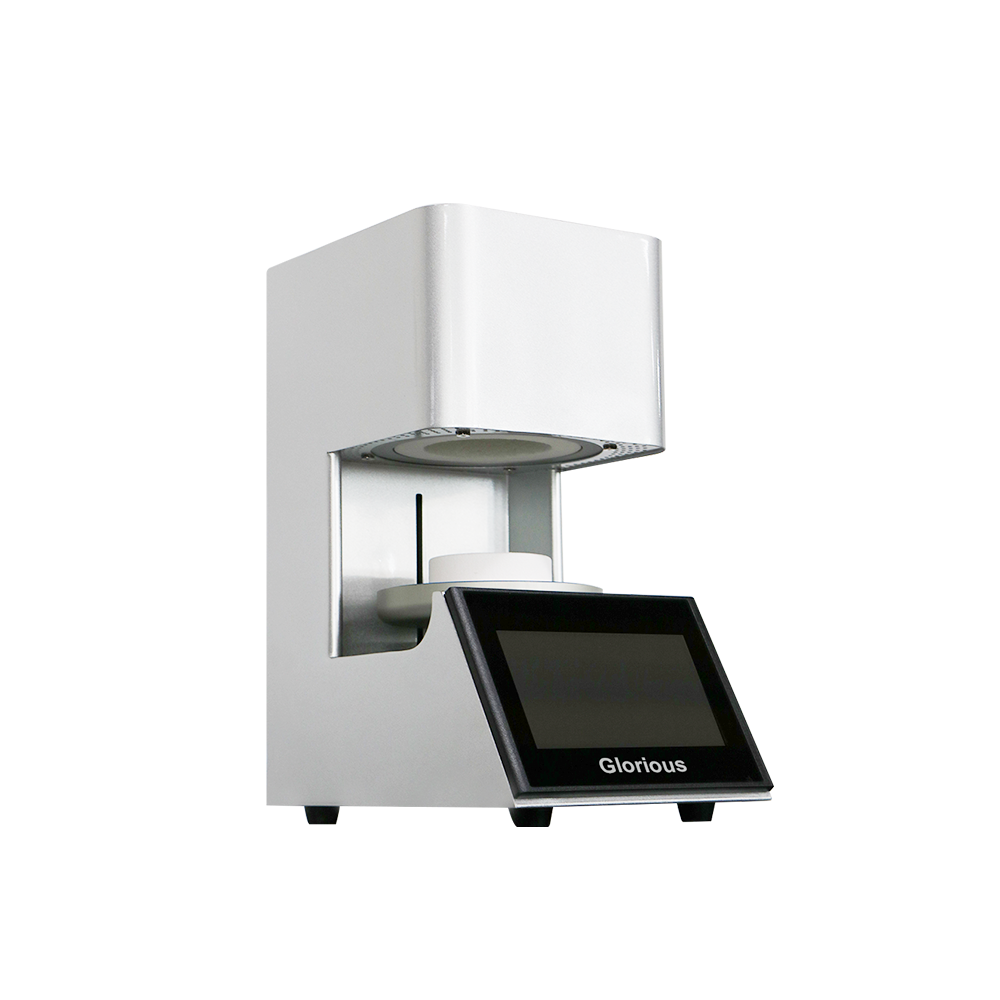

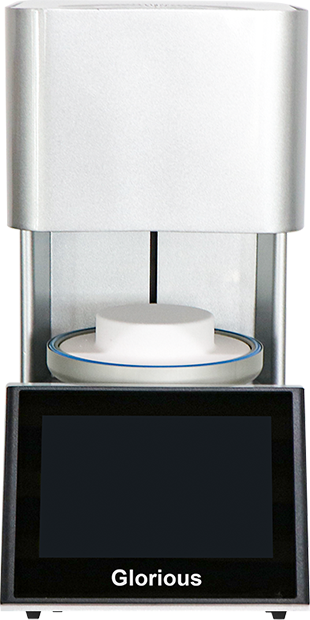

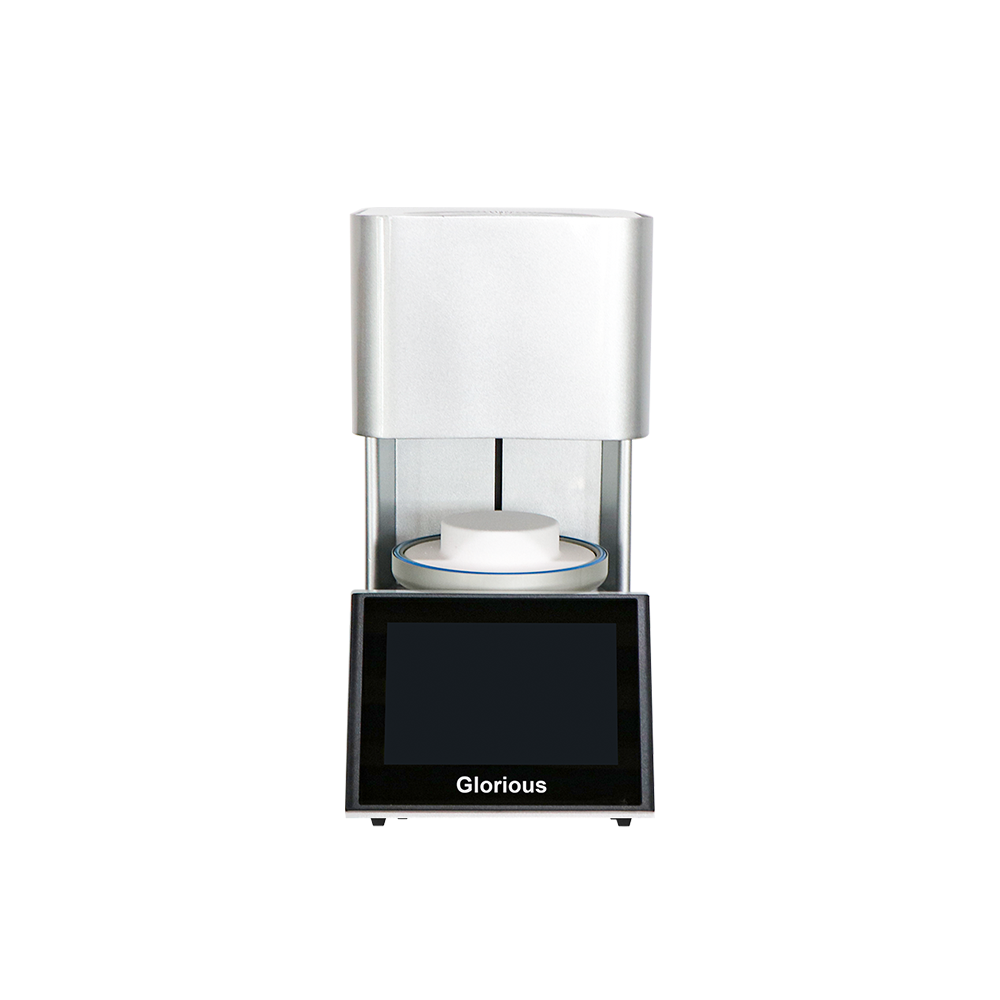

Dental Porcelain Furnace 5S2


Net weight is only 10.5kg

The lightest single and double curve porcelain furnace


The Reliable Sintering Expert: 5S2

Smart Operating System


Dental Porcelain Furnace


Net weight is only 10.5kg

The lightest single and double curve porcelain furnace







Intelligent PID ±0.5°C

Temperature Control


Product advantages



Single and double curve porcelain furnace

Programs P1-P25 are in single curve mode; P26-P28 are in hyperbolic mode,which provides a complete crystallization process for glass ceramic crystallization.


Al Temperature Control

High-precision Al temperature adjustment function ensures that the actual temperature error is within +/-0.5°


Uniformity And Stability

Quartz spiral furnace,German densely wound furace wire technology, fundamentally ensures the uniformity and long-term stability of the temperature field



30 custom programs

Built-in programs

Precise temperature control induction ensures

that the sintered zirconia product has a natural,

transparent color and accurate color.



                                                                                                     Vacuum pressure maintaining function                                       Touch Screen

                                                                                           value 85-102% can be set,                                                                     Easy and convenient operation

                                                                                           (set to 102% for vacuum pump to start all the time)


                                                                                 Heating rate                                                                                Maximum temperature ℃

                                                                                                      Maximum 110 degrees                                                                          Maximum 1200 degrees Celsius

                                                                                           Celsius/minute                                                                                       (2283 degrees Fahrenheit)


                                                                                 Special Material                                                                           Maximum temperature holding time

                                                                                                      It is not easy to break during high                                                         Up to 60 minutes

                                                                                          temperature rise and fall

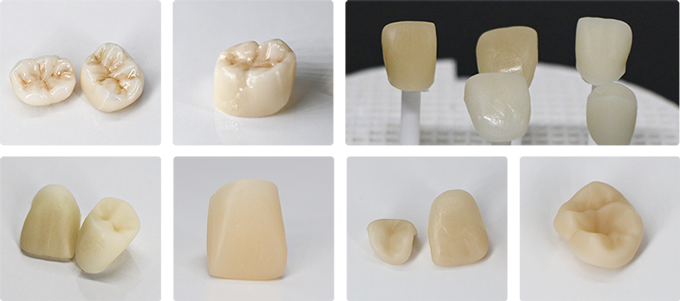

Sample Display





Efficient temperature control                                   Simple operation                                              Application

Ensures perfect integration of porcelain                           Humanized operation interface, easy                       Can be used to make porcelain teeth,

material and tooth base                                                    to understand                                                            repair tooth wear, etc.



Uniform heating                                                       High temperature resistance                             Safety


Avoid deformation or cracking of porcelain                      Reduce heat loss and improve                                 Mulitiple safety protection

materials caused by uneven temperature                          energy utilization                                                     measures




Parameter intelligent module:


The lightest single and double curve porcelain furnace on the market. P1-P25 program is single curve mode; P26-P28 is double curve mode, which provides a complete crystallization process for glass ceramic crystallization.

7-inch capacitive operation screen is as smooth as using a mobile phone. The minimalist operating system is quickly familiar with use.

High-precision linear guide rail, smooth free operation and no jitter.

Quartz spiral furnace,German densely wound furnace wire technology, fundamentally ensures the uniformity and long-term stability of the temperature field.

Vacuum pressure holding function, vacuum value 85-102% can be set, (set 102% for the vacuum pump to start all the time)



Product Parameter




Equipment weight : 10.5KG
Furnace Size : Φ86mm
Voltage : 220V
Equipment Size : 310*205*400mm
Power :1.5KW
Maximum Temperature : 1200℃
Heating rate : 1℃-110℃/min

Maximum Temperature

Holding time : Up to 60 minutes

Furnace Structure :Pallet lifting
Vacuum degree : 85%-102%Language options : Chinese / English
Packing weight : 28kg (including vucuum pump 5KG)
Temperature controls accuracy : Precise temperature controls 0.5℃
