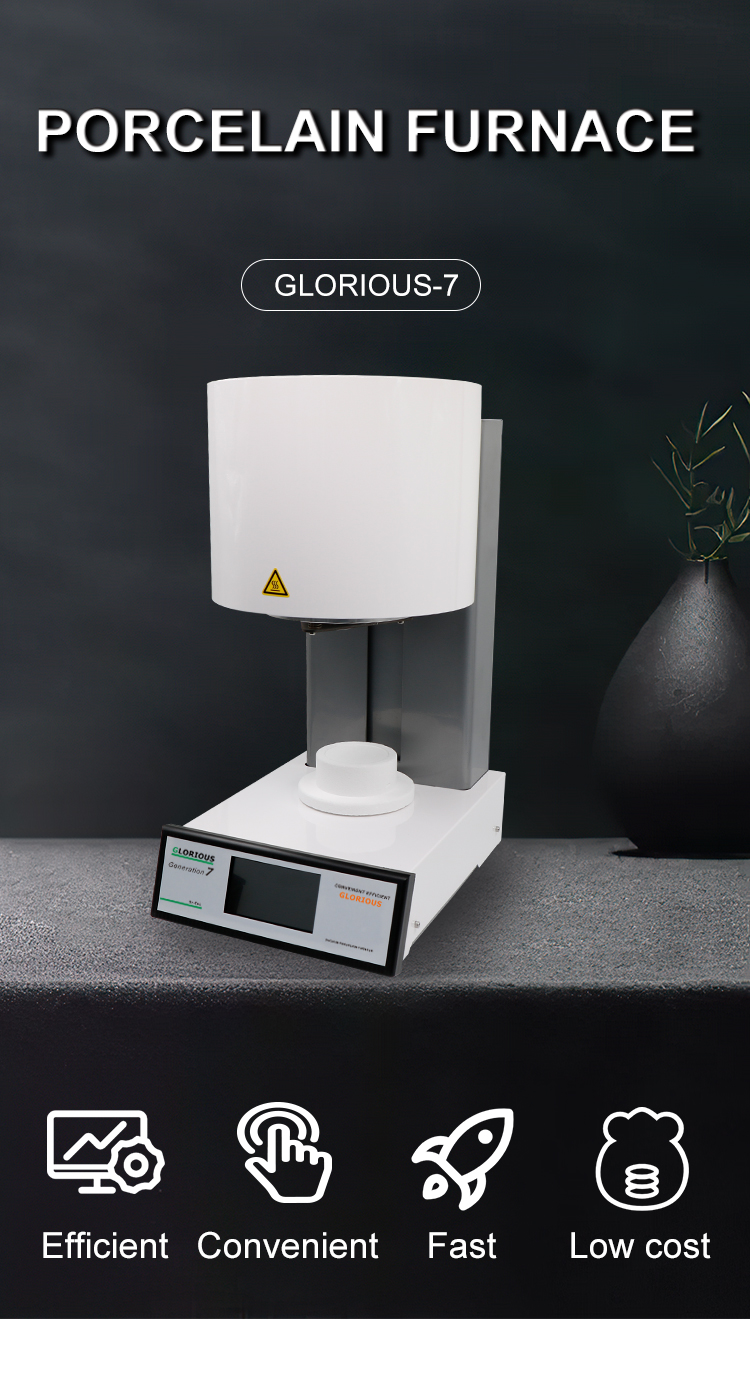

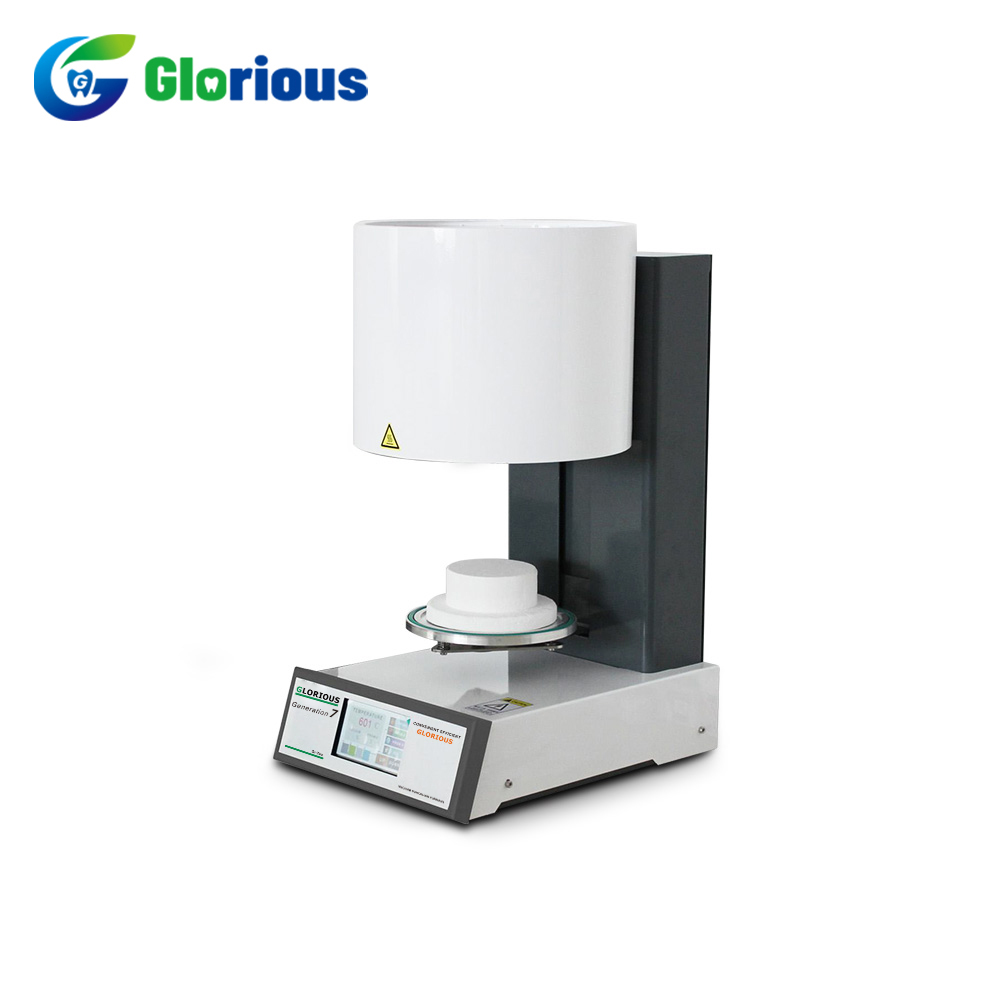

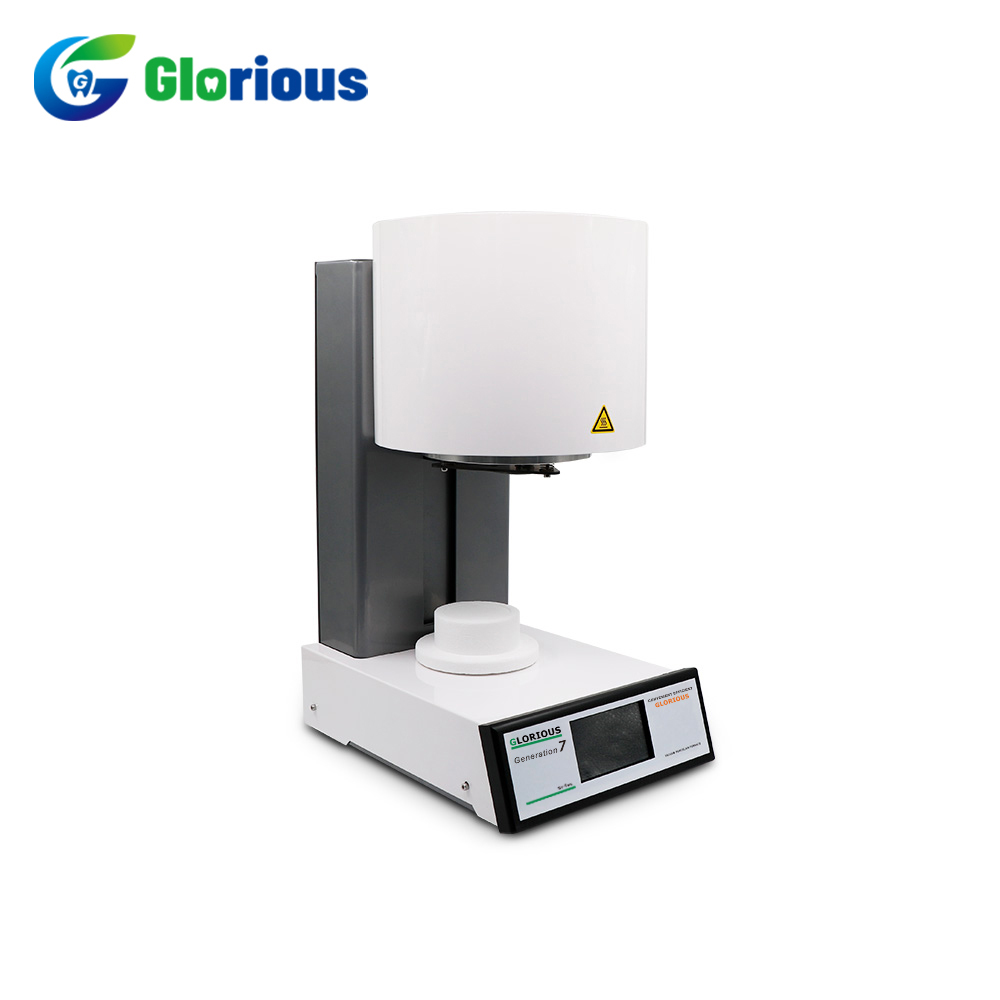

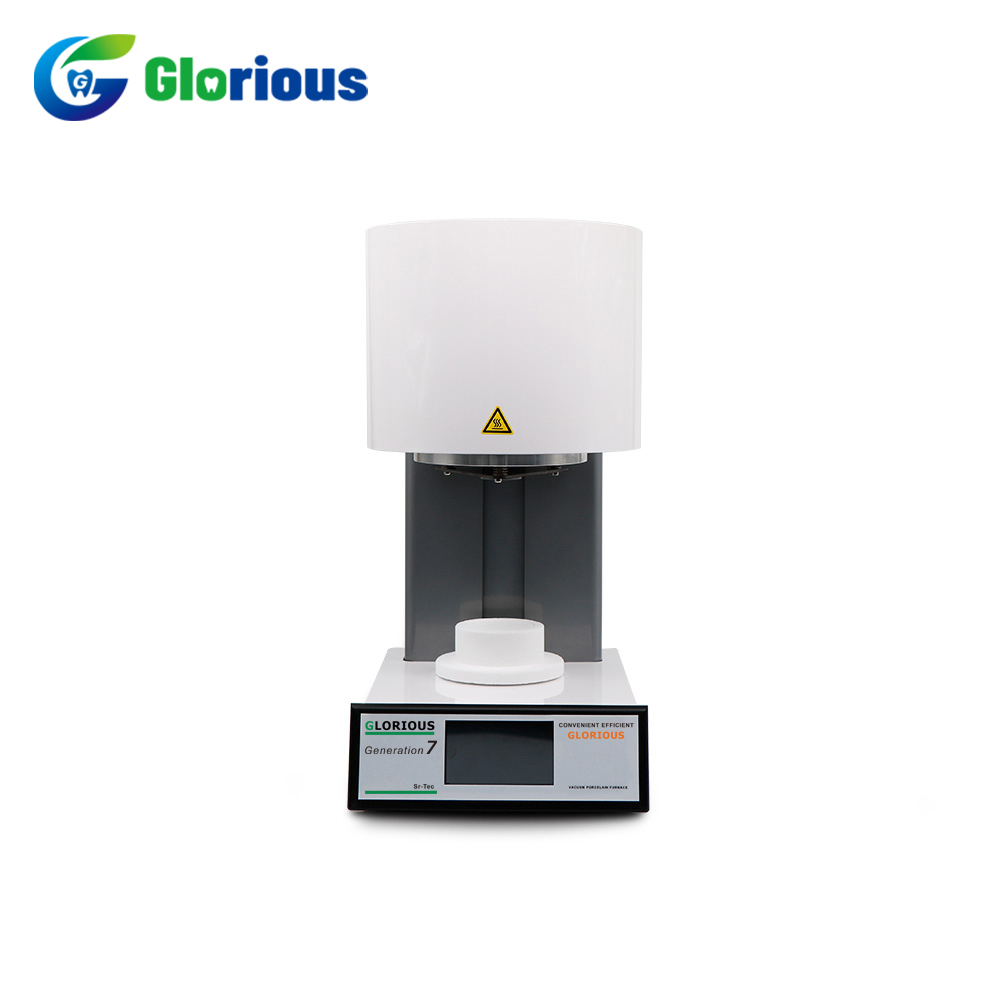

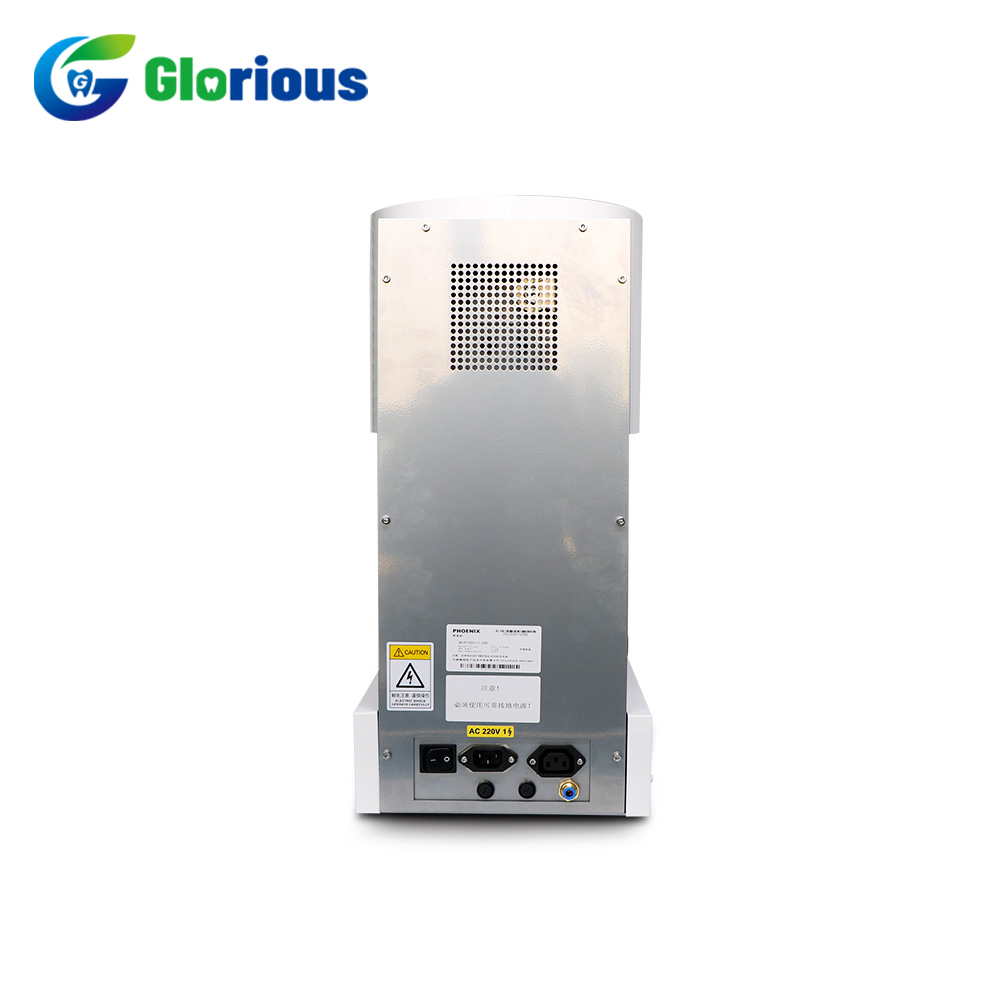

Glorious 7 Dental Porcelain Furnace

PHOENIX both in the porcelain transparency degree porcelain shape retention, have a very perfect performance using Sr-3 soft fire regeneration technology, the strength of the tooth body do better performance.Use this technology, the porcelain products durable and life extension.

Inquire Now Next Product

Introduction

PHOENIX both in the porcelain transparency degree porcelain shape retention, have a very perfect performance using Sr-3 soft fire regeneration technology, the strength of the tooth body do better performance.Use this technology, the porcelain products durable and life extension.

Advantage

1.Efficient. Convenient, Fast. Low cost Compatible with all casting porcelain blocks. 2.Built in numbers of program me and can be used as a ceramic furnace.
3.Servo motor driven die casting,constant pressure no external air source high success rate.

Functional Features

*High quality of the function of temperature adjustment automatically, ensure the actually temperature error within +/-1; *Easy to operate, compact size, the smallest size in the world at present;
*Precision stepper motor drive, the smooth and litter-free functioning, noise-free, Speed programmable;
*Spiral quartz chamber of furnace;Temperature adjustment automatically before every firing procedure,
*True color touch screen, the operation is simple and convenient;*USB port can easily connect to the computer service program;
*Built in 99 program;
*Optical status display.

Specification

Operation
Rate of heating up	Max 200 degrees Celsius/min (392 degrees Fahrenheit/min)
Maximum temperature	Maximum 1200 degrees Celsius (2,283 degrees Fahrenheit)
Maximum temperature Maximum 2 hours 46 minutes holding time	Maximum 2 hours 46 minutes
Vacuum level setting 1-101% standard	1-101%
Electric power
Scope ofoperation	100-120V 50/60HZ 230V 50/60HZ
Current	14.5 amps @110V 7.0 amps @230V
Rate of work	Max 1500 watts (excluding vacuum pump)
Typical specifications
volume	30m high x 39cm wide x55cm deep
Furnace core platform	9cm(3.5 ") diameter
The net weight	19Kg(within 1Kg depending on accessories)
Packing weight included	21.5Kg(within 1Kg depending on accessories)

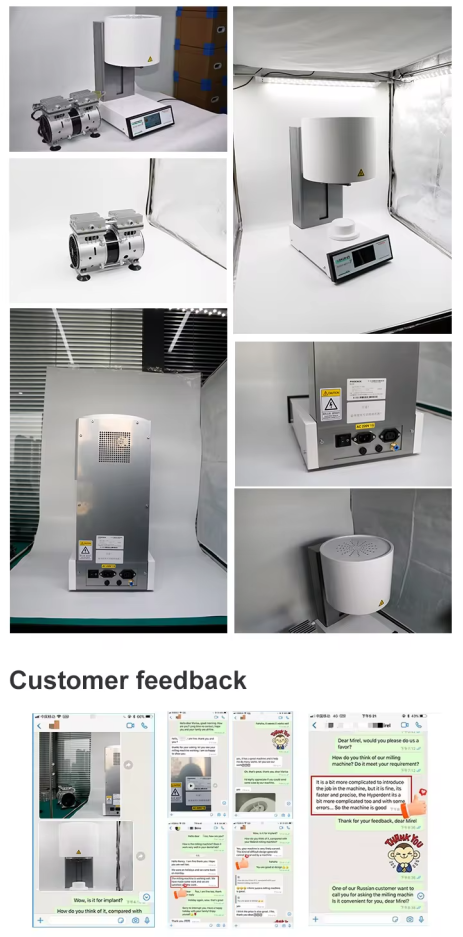

Product real shooting
