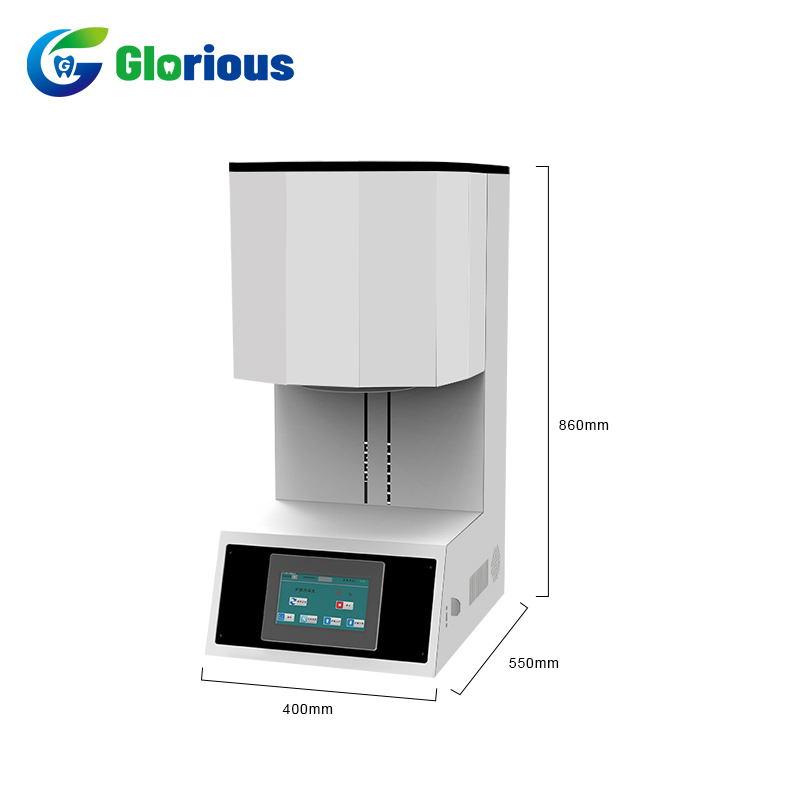

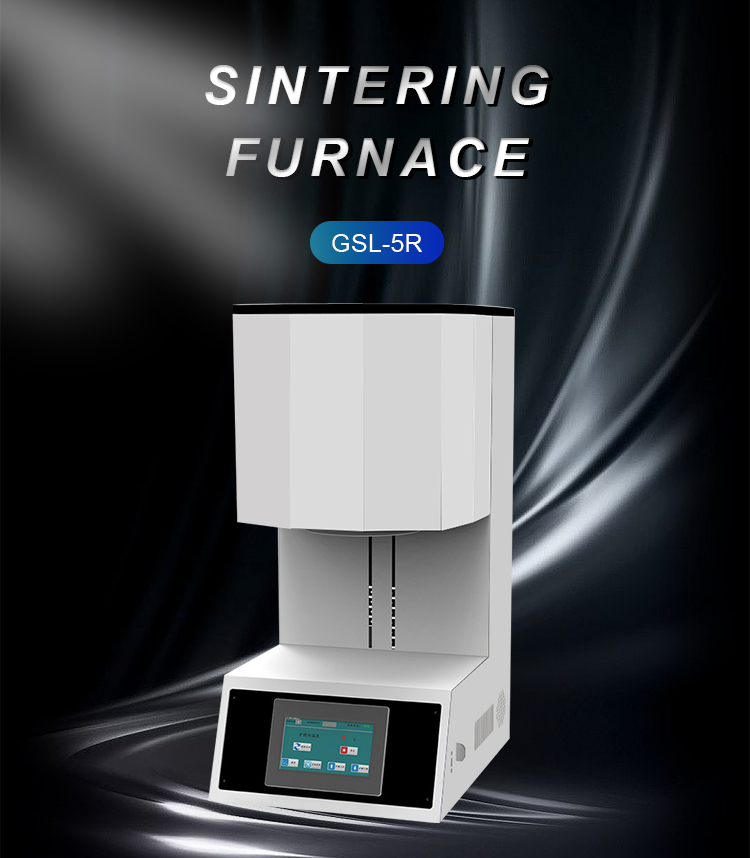

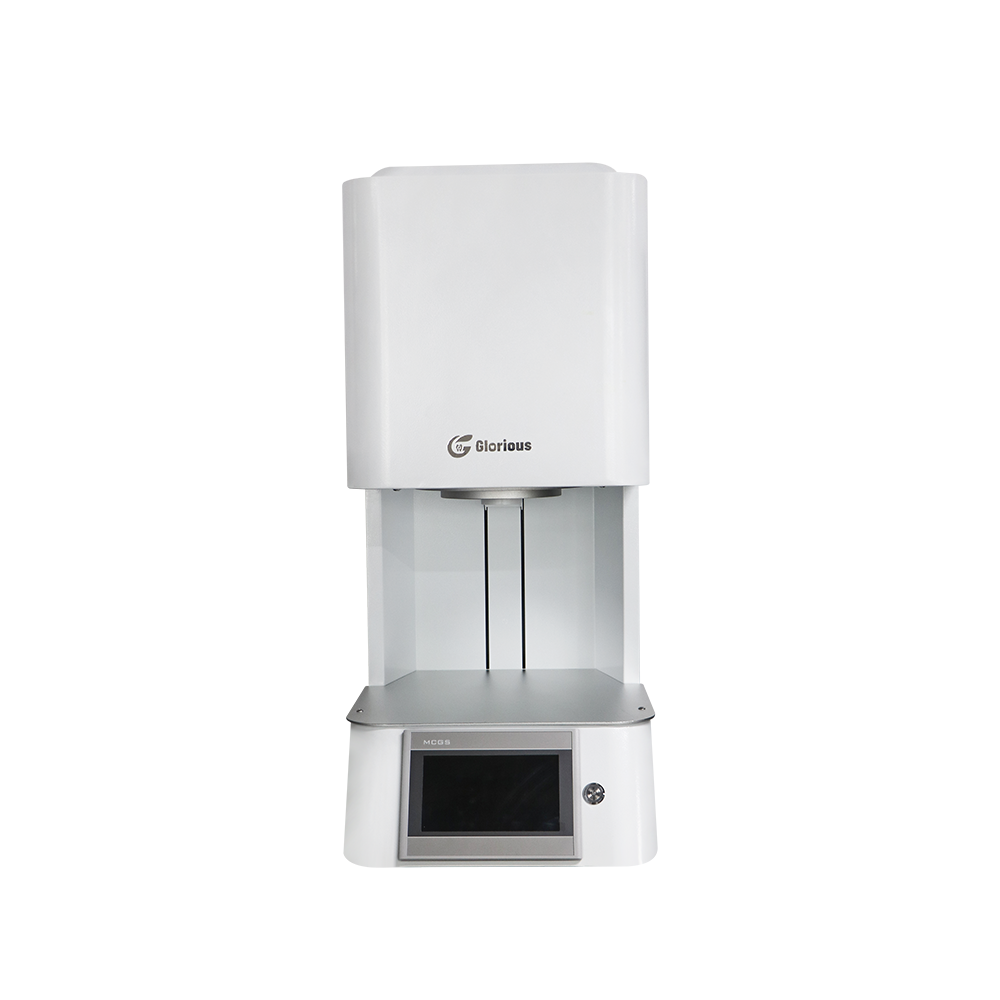

Glorious Dental Sintering Furnace

1.The integration of fast and slow sintering significantly improves the efficiency of single sintering

2.Meet the diversified roasting needs of various zirconia materials

3.Built-in automatic cooling program, bid farewell to tedious waiting for cooling
4.Support multiple languages

5.Wireless and 4G Internet of Things can be configured to control and monitor the running status of the equipment. Remote firmware upgrade and program download can be realized.

Inquire Now Next Product

Product Introduction

The integration of fast and slow sintering significantly improves the efficiency of single sintering 2.Meet the diversified roasting needs of various zirconia materials
Built-in automatic cooling program, bid farewell to tedious waiting for cooling
Support multiple languages
Wireless and 4G Internet of Things can be configured to control and monitor the running status of the equipment. Remote firmware upgrade and program download can be realized.

Product Description

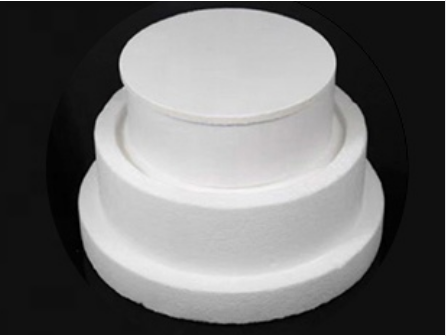

Simultaneous sintering of double-layered materials, single sintering ≥80 pieces, to maximize production efficiency. More than 100
sintering curves are stored to easily meet diverse sintering needs.

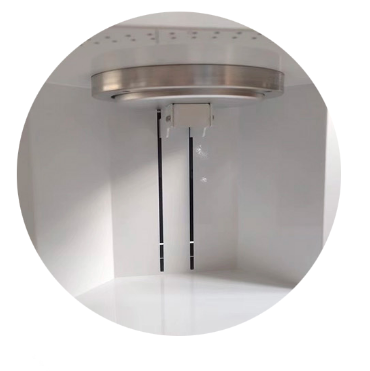

The heating elements in the furnace are dis- tributed in a ring shape, the furnace tempera- ture is more uniform at high
temperature, and the PID intelligent temperature control accurately controls the temperature ±3°C.

Built-in automatic cooling program,Say goodbye to tedious manual cooling.

Built-in automatic cooling program,Say goodbye to tedious manual cooling.

Touch screen operation, one-button start, more convenient processing

High-performance trans- mission components and temperature control com- ponents, stable perfor- mance and low noise

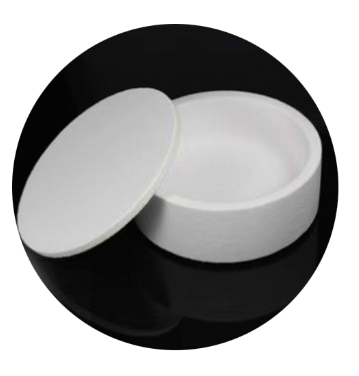

Using high-purity silicon molybdenum rod core heating element, high-per- formance thermal insulation material and furnace
thickening design,long-last- ing thermal insulation, safety, energy saving and no pollution.

Can be configured with remote mobile phone /tablet/web page program- ming, upload and download, firmware upgrade, diagnosis,
monitoring, and detect abnormal conditions on site at any time.

Details Images

Sintering furnace	Mainly composed of four high purity silicon molybdenum rods and 1800 type high purity fiber of refractory material, can ensure the purity of zirconium oxide denture sintering

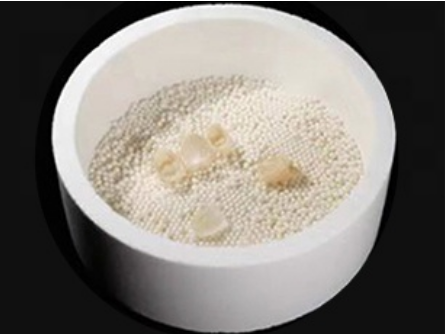

Sintering tray	Carries the sintered plate with denture.
Furnace control system	The main screen, and controlled by, transformers, relays, etc, control the normal operation of equipment.
Power switch	Control circuit power on and off.
Fan	The control circuit and the surface of furnace body cooling
Touch screen	To precise control of heating process, ensure that according to the set tem- perature curve.
Support	Convenient mobile equipment.
Back cover	Protect the security of the sintering furnace behind the lines.
Roof	Top heating element and operating personnel safety.

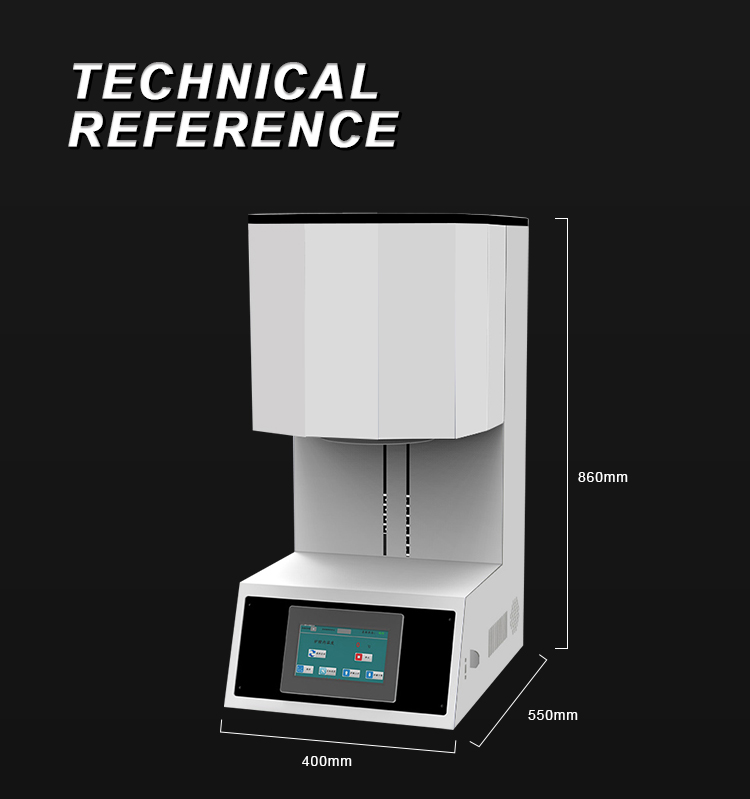

Furnace size	110mm*90mm
Number of crucibles:	2 layers
Heating element type	High purity silicon molybdenum rod or silicon carbon rod
Power supply	AC220V/50HZ 60HZ
Control accuracy	±3℃
Maximum withstand ±3℃ temperature	1700℃
Control method	7" color touch screen
The maximum number of program settings	> 100
Application	Zirconium oxide crystal
Weight	About 85KG
Sensor Type	High Precision Type B Thermocouple
Number of heating elements	4
Rated power	3KW
Operating temperature	≤1650℃
Heating rate	＜40℃/min
Heating type	Fast burn/slow burn

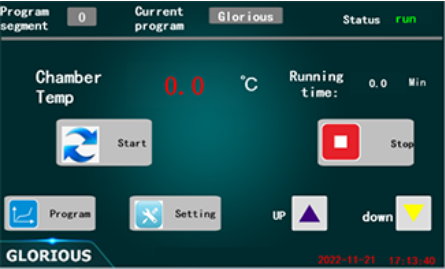

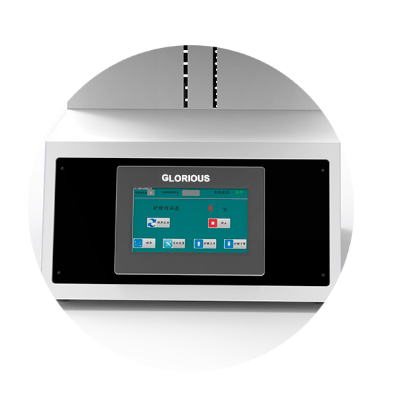

The screen is a touch screen. The upper right corner of the main inter- face displays the running state of the device (running,
stopping and suspending). The main interface displays the furnace temperature, program, system setting, furnace rising and
descending, program starting and stopping.
