Dental equipment manufacturer
Sintering Furnace
Smart Operating System
3-layer sintering plate
Can sinter about 75 single crowns at the same time

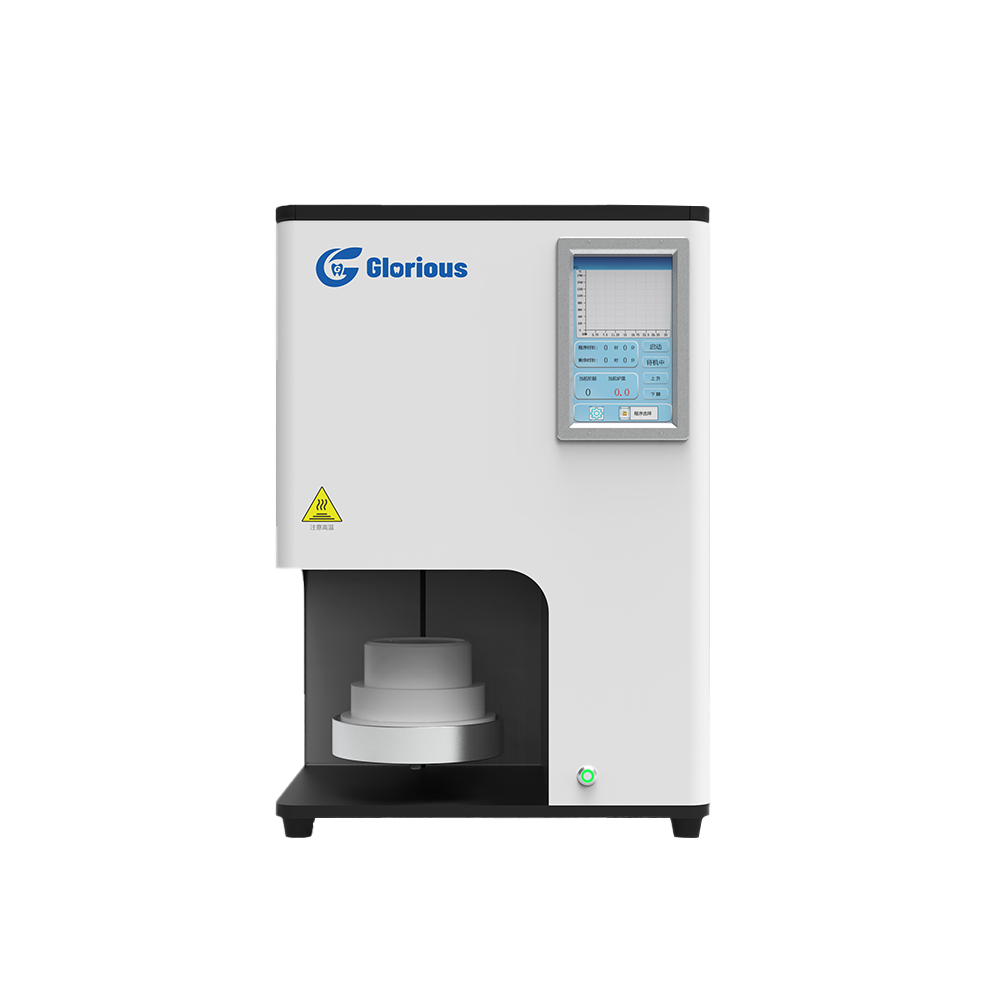

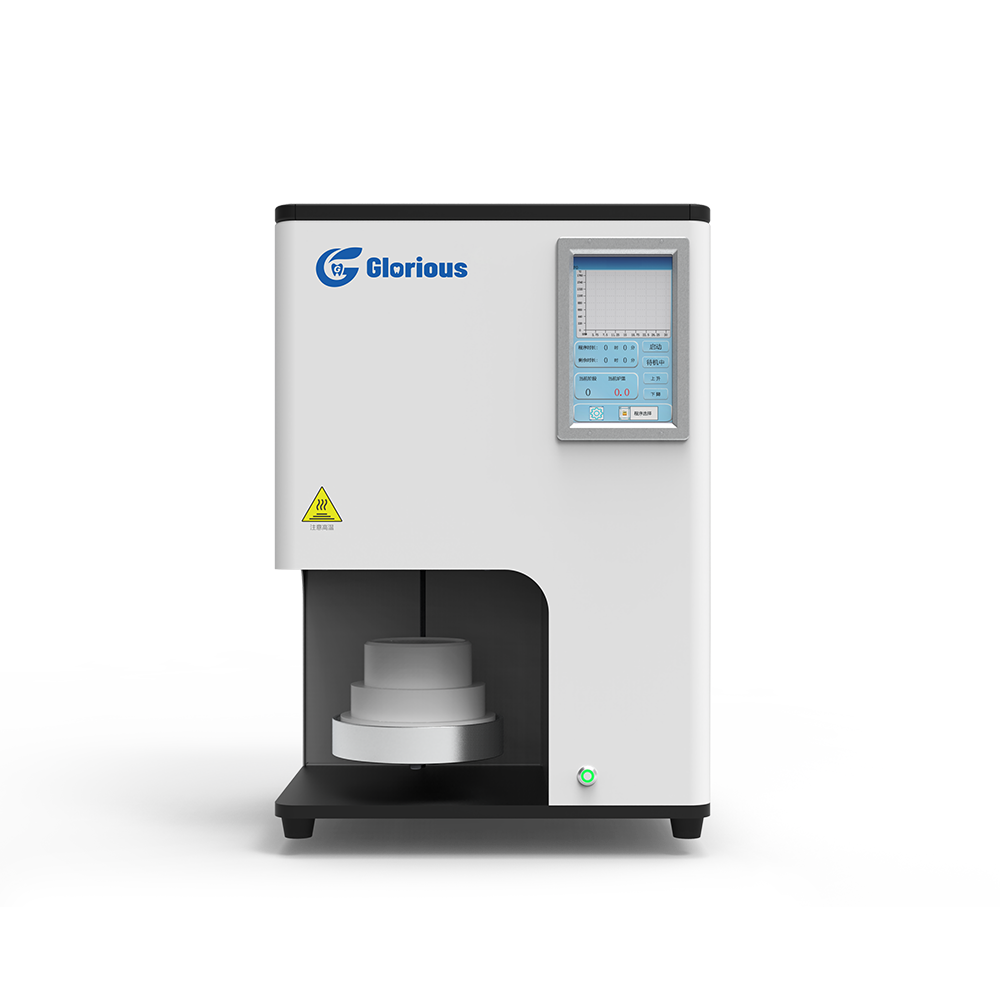

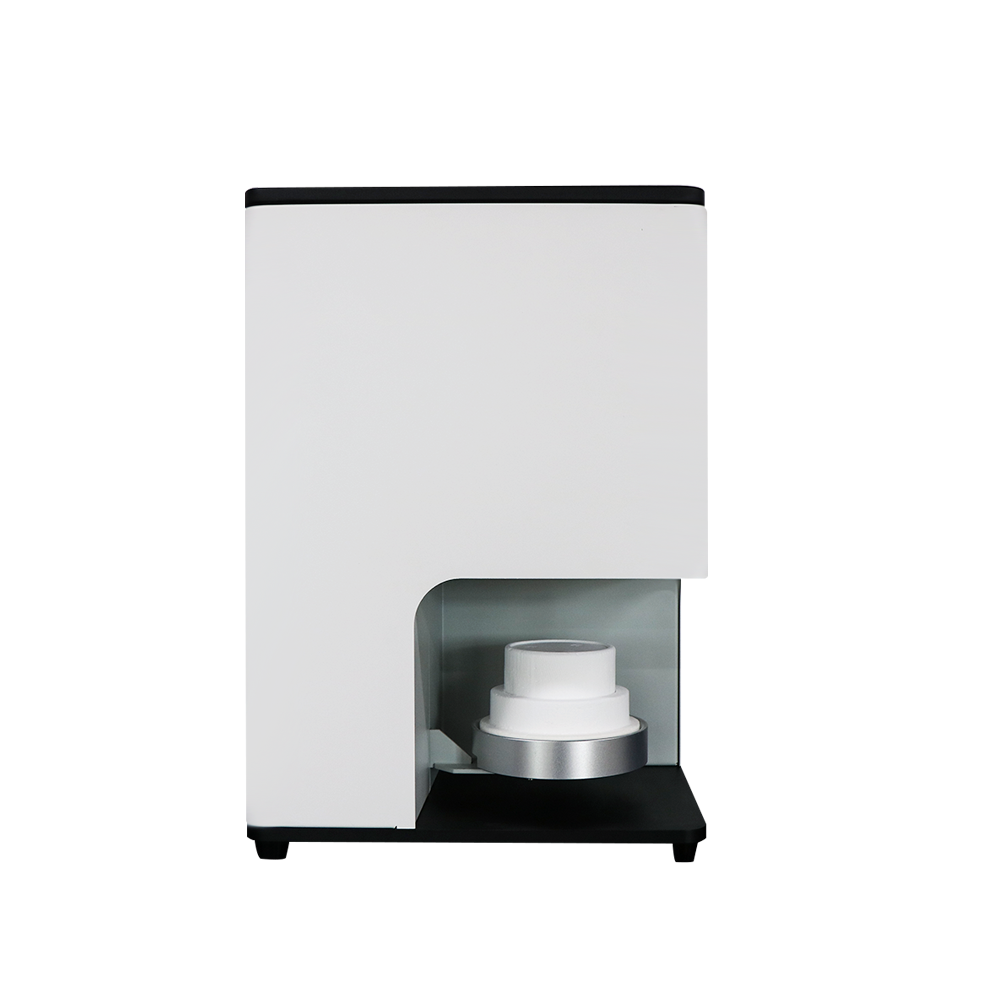

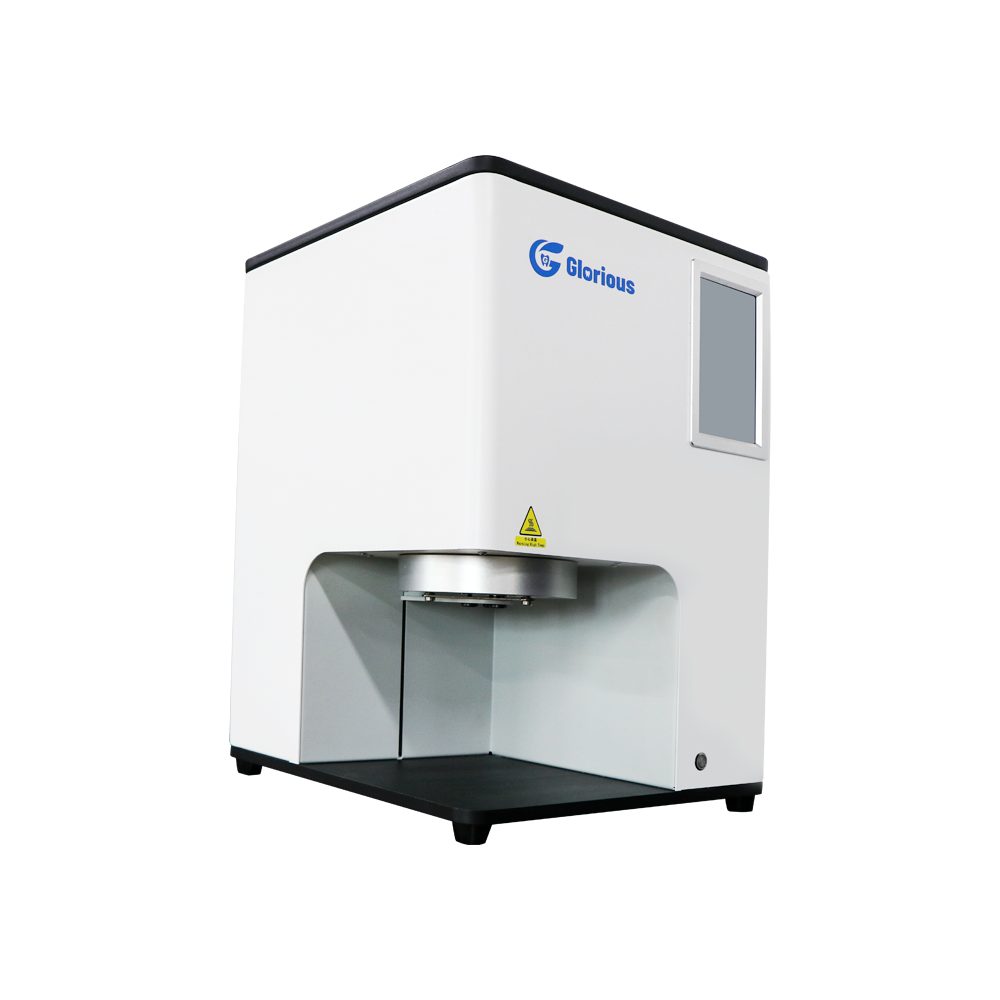

GS07 Dental Sintering Furnace
Product Advantages
Intelligent PID ±0.1C Temperature Control
1.PID temperature control system
Self-developed PIDtemperature control system, which can achieve a maximum temperature error within ±0.1 degrees
2.24h uninterrupted work
Support 24-hour uninterrupted work, and can automatically shut down after work, saving energy and improving safety.

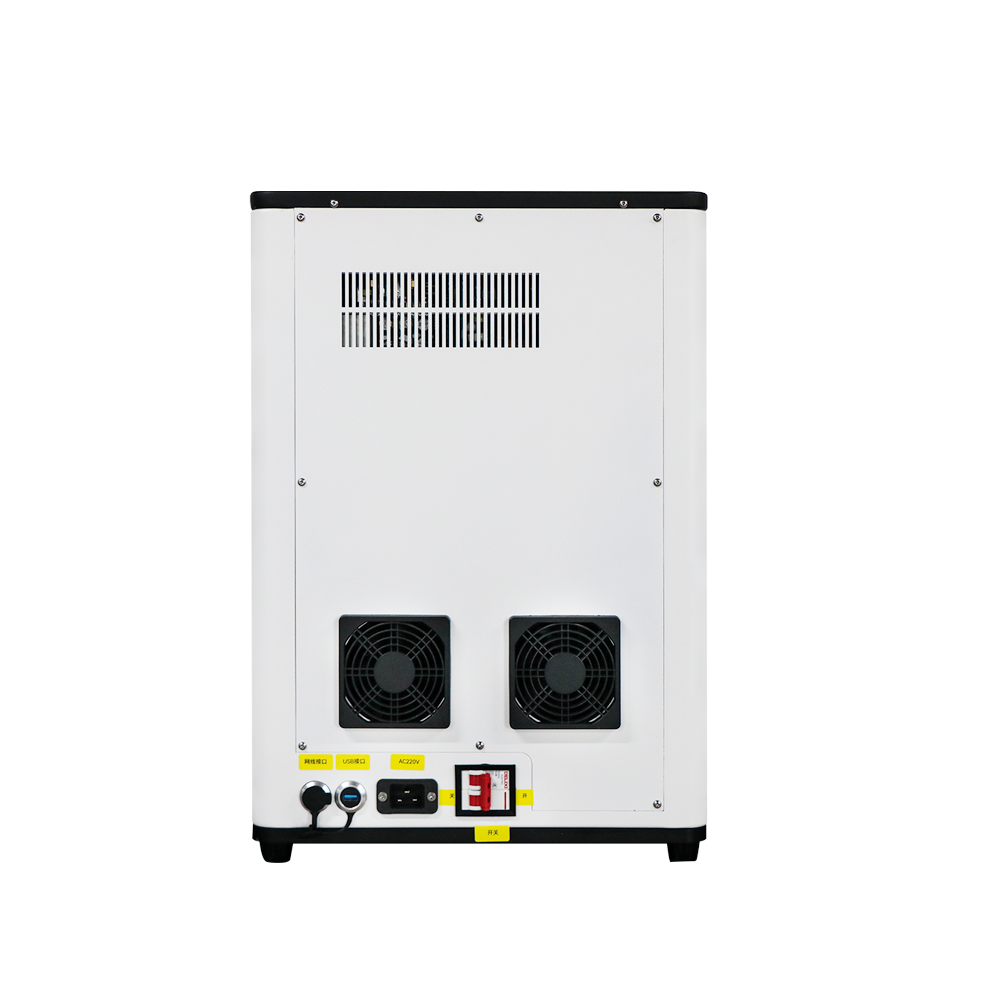

3.Cool max3.0 cooling technology
Adopting cool max3.0 cooling technology, the furnace body quickly dissipates heat outside to ensure the long service life of the product.
【42 minutes】
Rapid sintering
Precise temperature control induction ensures
that the sintered zirconia product has a natural, transparent color and accurate color.
≥100 Curve Touch Screen
Up to 100 categories of firing programs can be programmed Easy and convenient operation
SD Card Storage Function PID Controller
Convenient for backing up and downloading sintering data Ensure even temperature distribution in the furnace
Special Material
It is not easy to break during high temperature rise and fall When sintering below 1600℃，The temperature can be controlled to ±0.01 degrees
Cluster administration
Supports cluster management of multiple devices, remote updates and maintenance of loT
The system is equipped with JIS heating couples, thermocouple K type, and the sampling rate is 1 millisecond; the normal sampling rate is 200 milliseconds, and the temperature deviation is also large.
GS07 Product Parameter
| Voltage： | 220V | Equipment size： | 400*400*580mm |
| Power： | 3.0KW | maximum temperature： | 1600℃ |
| Equipment weight： | 42KG | Language options： | Chinese/English/Russian |
| Furnace size： | 106mm*100mm | Furnace structure： | Pallet lifting |

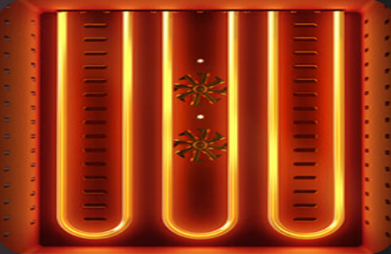

| Heating rate： | 1℃-200℃/min | Heating element： | Imported silicon molybdenum rod |
| Crucible material： | Corundum crucible | Heat dissipation method： | Cool max 3.0 cooling technology |
| Temperature control accuracy： | Precise temperature control ±0.1℃ | ||
| Temperature control system： | Al intelligent PID temperature control system | ||
Product accessories + details
