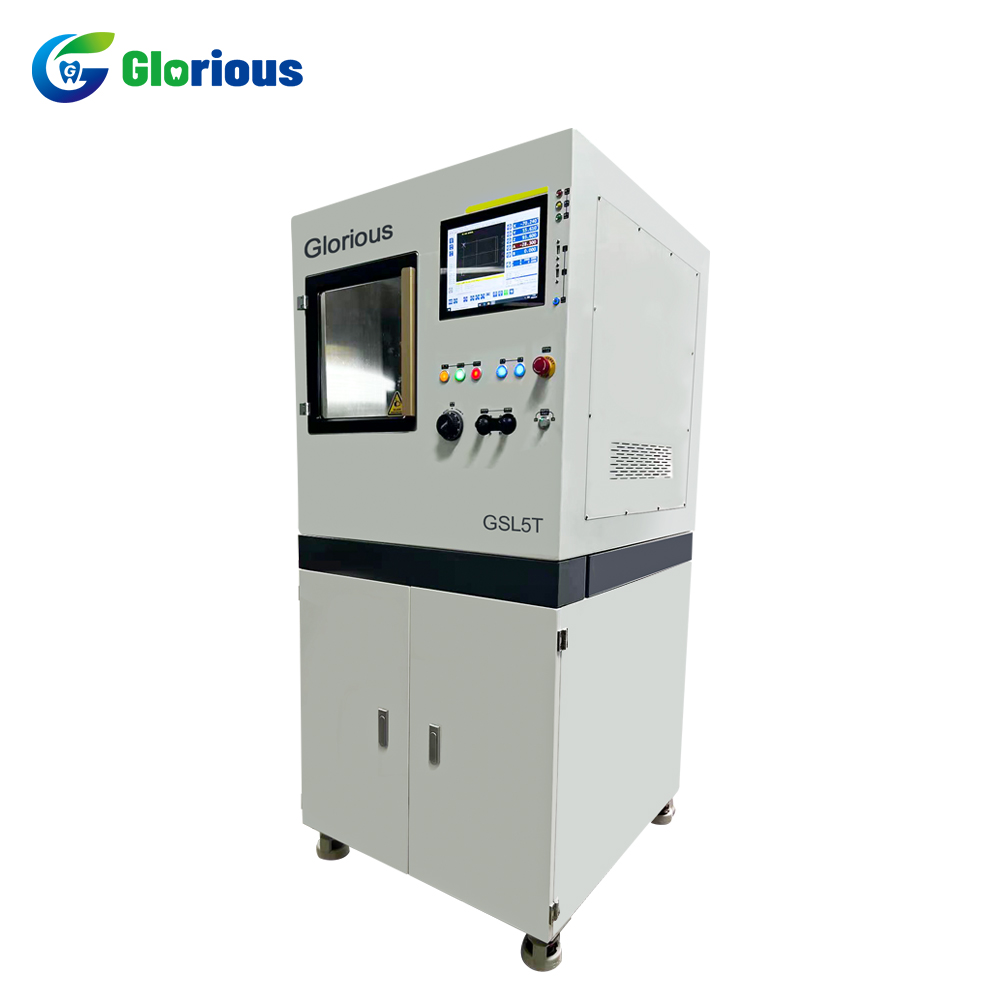

CADCAM High precision For Implant Bar Dental Milling Machine 5axis Wet Tatinuim Milling Machine GLS5T For Dental Lab

Cost- effective, high precision 5-axis simultaneous machining of small parts

GSL5T is especially convenient for precise and simultaneous 5 axis milling of small parts in a single clamping operation. All machinable materials up to a diameter of 60 mm are
admissible, as well as milling of highly complex geometries. The automatic tool changer has 6 slots and a builtin tool length sensor. Short setup times, low energy consumption with a
power input of less than 2.5 kWh on average and the excellent value for money relation allow having high profitability even at low volumes. And all this with a footprint of only 1 ㎡.

Inquire Now Next Product

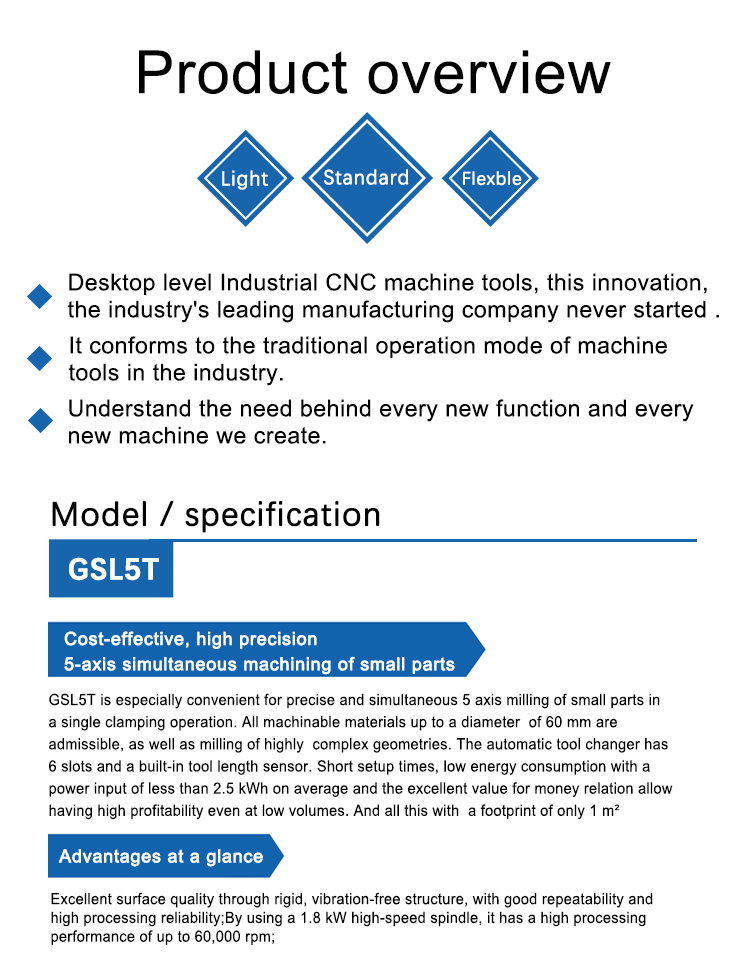

Product Description

· Desktop level Industrial CNC machine tools, this innovation, the industry's leading manufacturing company never started.
· It conforms to the traditional operation mode of machine tools in the industry.· Understand the need behind every new function and every new machine we create.

Specification

Cost- effective, high precision 5-axis simultaneous machining of small parts

GSL5T is especially convenient for precise and simultaneous 5 axis milling of small parts in
a single clamping operation. All machinable materials up to a diameter of 60 mm are
admissible, as well as milling of highly complex geometries. The automatic tool changer has
6 slots and a builtin tool length sensor. Short setup times, low energy consumption with a
power input of less than 2.5 kWh on average and the excellent value for money relation allow
having high profitability even at low volumes. And all this with a footprint of only 1 ㎡.

Advantages at a glance

Excellent surface quality through rigid, vibration-free structure, with good repeatability and
high processing reliability;By using a 1.8 kW high-speed spindle, it has a high processing
performance of up to 60,000 rpm;

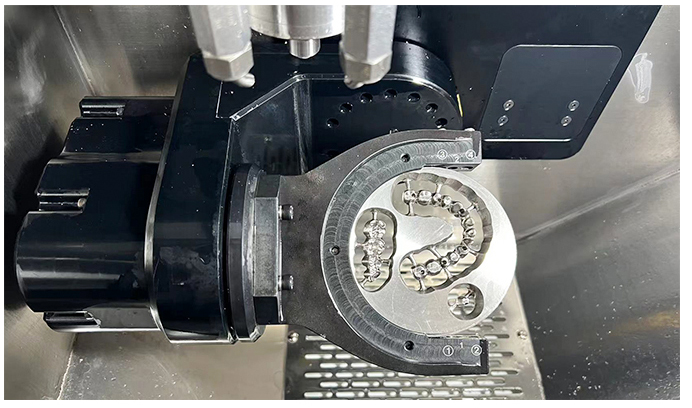

5- axis- GLS5T application case

CAD/CAM denture milling machine, lithium disilicate ,titanium, cobalt chromium,nickel chromium, zirconia, wax, PMMA.

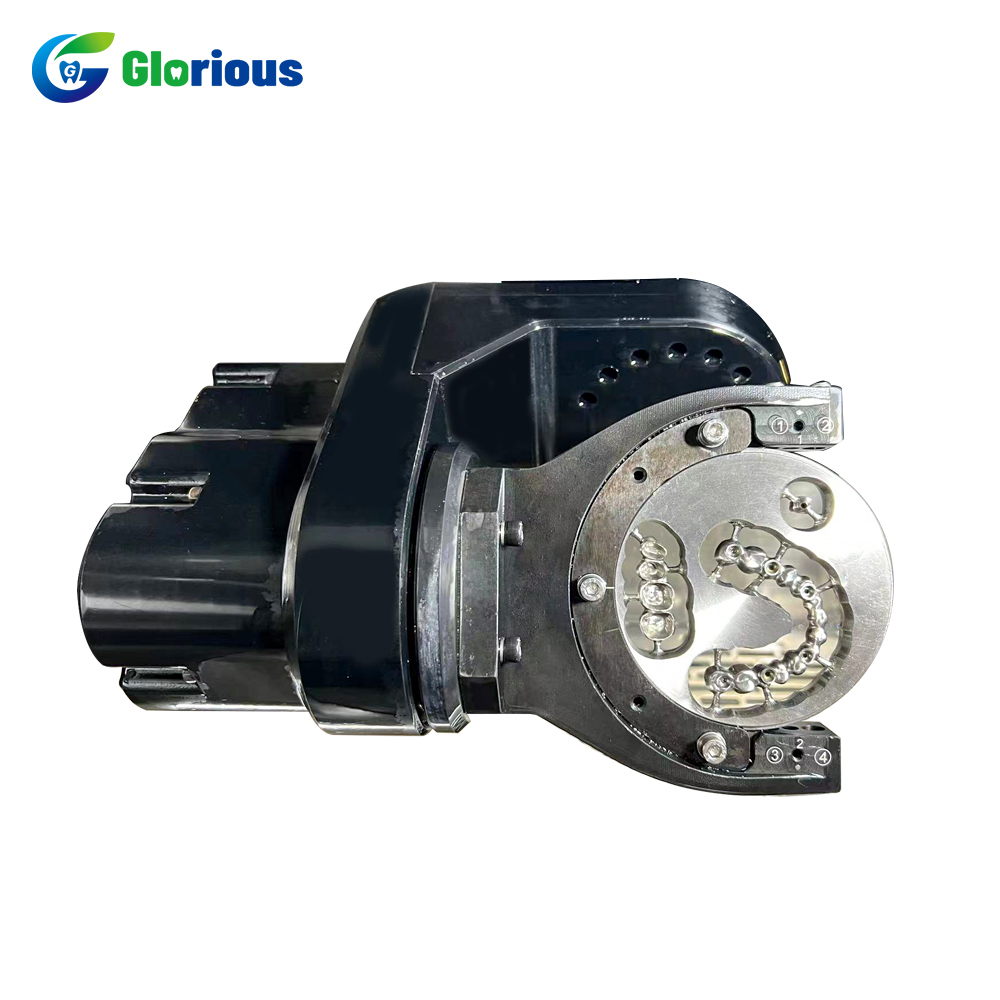

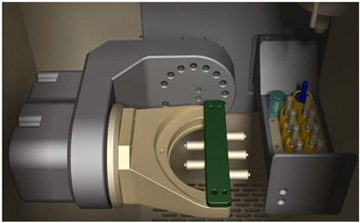

Workbench Fixture

TP01 plate material fixture

Lithium Disilicate Fixture

TZ05 Titanium Column Fixture

Product parameters

Category	Project	Parameter

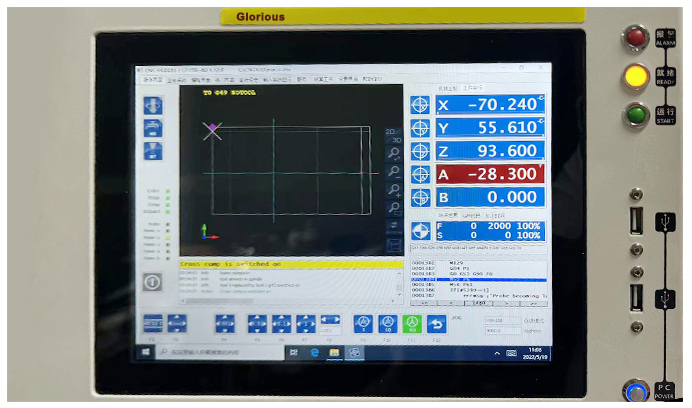

Control System	Glorious
Working area	X axis/Y axis/Z axis	200mm/105mm/105mm
Workbench	Working desk size B axis b axisI c axis c axis C-axis indexing accuracy Workbench maximum load Maximum workpiece diameter height Table rotation speed	110 -110°~+120 / 360° 0.001 Horizontal 5kg: Vertical 3. 5kg 100*100mm 60rpm/min
Spindle	Spinde speed Maximum handle Spindle diameter Spindle motor power	60000rpm/min 6mm 62mm 1.8kw
Feed rate	Cutting speed Rapid movement (X/Y/Z)	1 ~ 10000mm/min 12000mm/min
Precision	Positioning accuracy (X/Y/Z/B/C) Repeated positioning accuracy (X/Y/Z/B/C)	X/Y/Z:0.01mm B/C:0 005* X/Y/Z:0.005mm B/C:0.002*

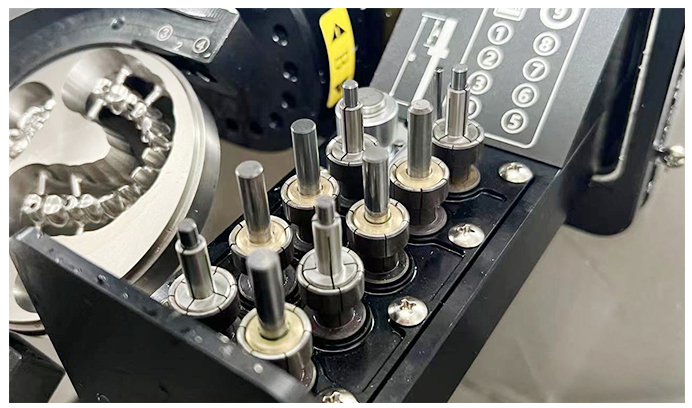

Tool magazine	Tool magazine form/tool change time Number of tools Maximum tool diameter and length	Telescopic tool magazine ! 2S T9 6mm/60mm
Cool system	Spindle cooling Workpiece cooling	External water cooler Spindle front nozzle
Vacuum system	Chip vacuuming	External dry vacuum cleaner
Air pressure system	Air pressure	0.5-0.8Mpa
Power supply	Input voltage	AC:220V/10A
Other	Dimensions (LWH) Vertical	750mm780mm1500mm 320kg
