Dental Micro Motor

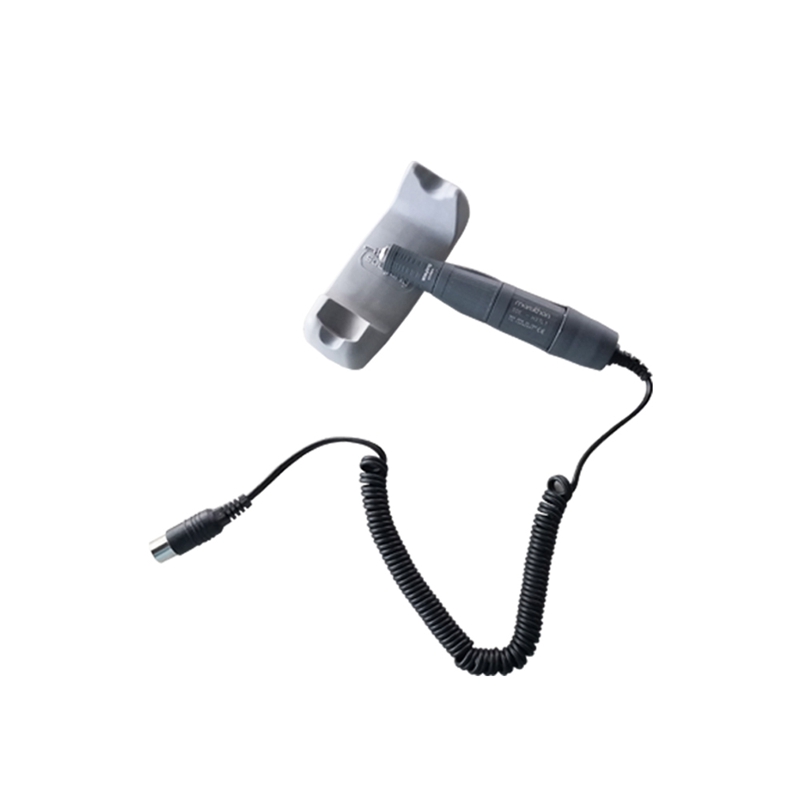

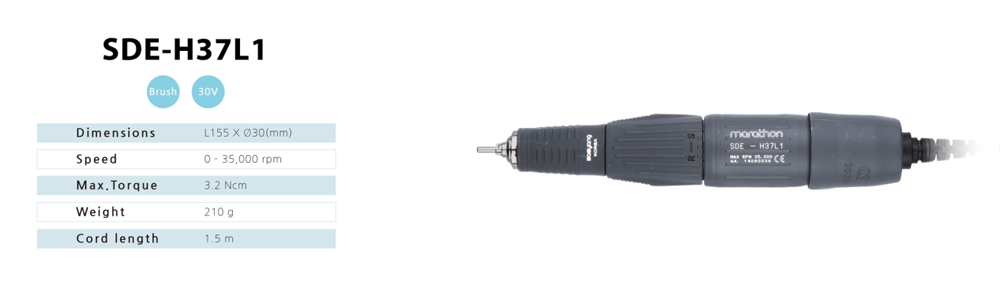

SEAYANG H37L1 parameters

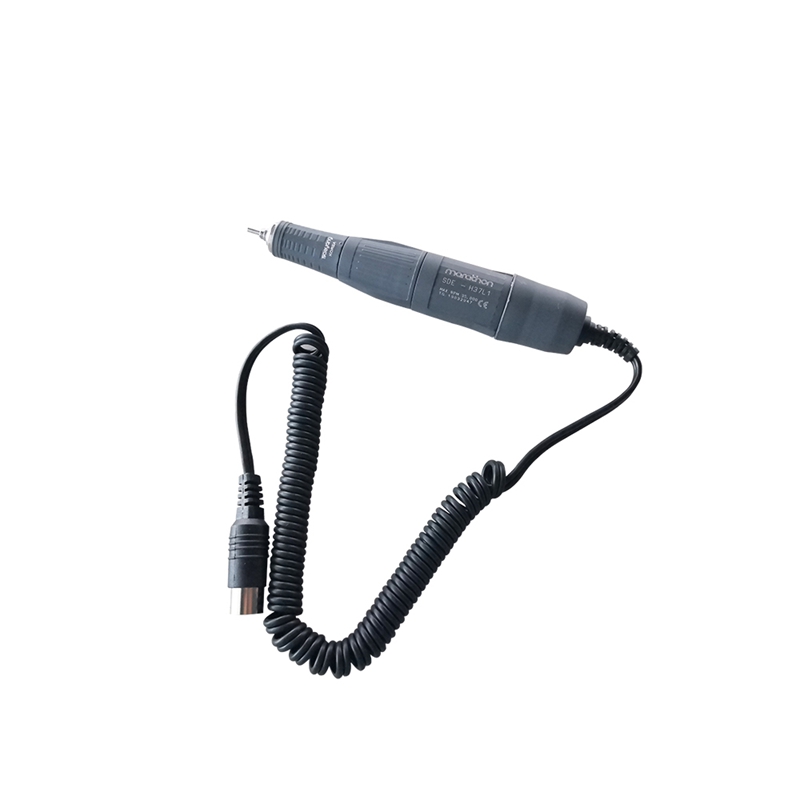

Motor handpiece model: SDE-H37L1

Catalog: No.#9045
Nonload: 0~35,000rpm
Max torque: 290gf • cm
Electric power: 65W
Standard size collet: ø 2,35 mm (ø 3,00 mm and ø 3,175 mm optional)
Weight: 208g

Features:

1. Multipurpose Micromotor for dental, laboratory, jewelry, industry.

2. Good work for polishing, Cutting, milling, trimming, grinding, casting moulds or materials and finishing surface.

3. Simple and easy operation (twist the handle counter-clock wise to change the bur and can be easily restored back to the original position)

4. SKU: SDE-H37L1

Specifications

1. Non-load Speed: 35,000 rpm Max.

2. Collet Sleeve size: 3/32"

3. Suitable Bur Size: dia.2.35mm HP

4. Max. Power: Controller Max.

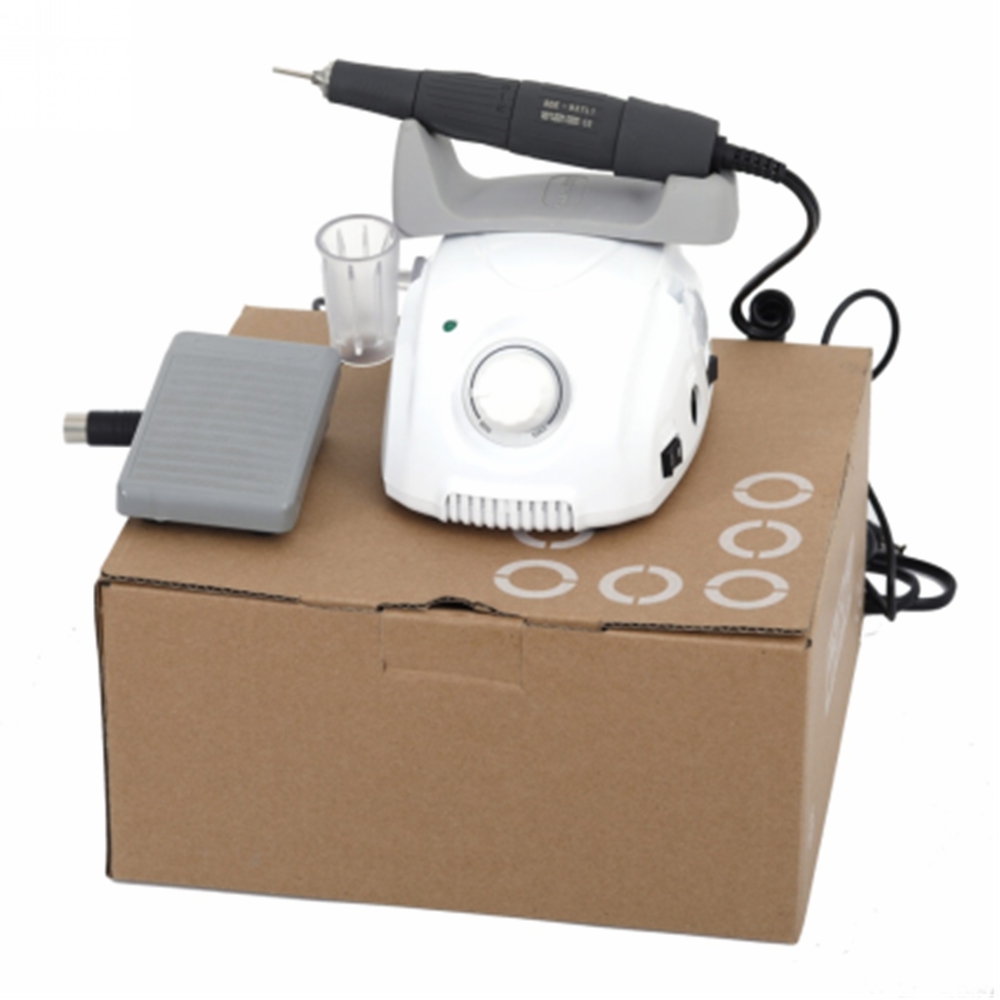

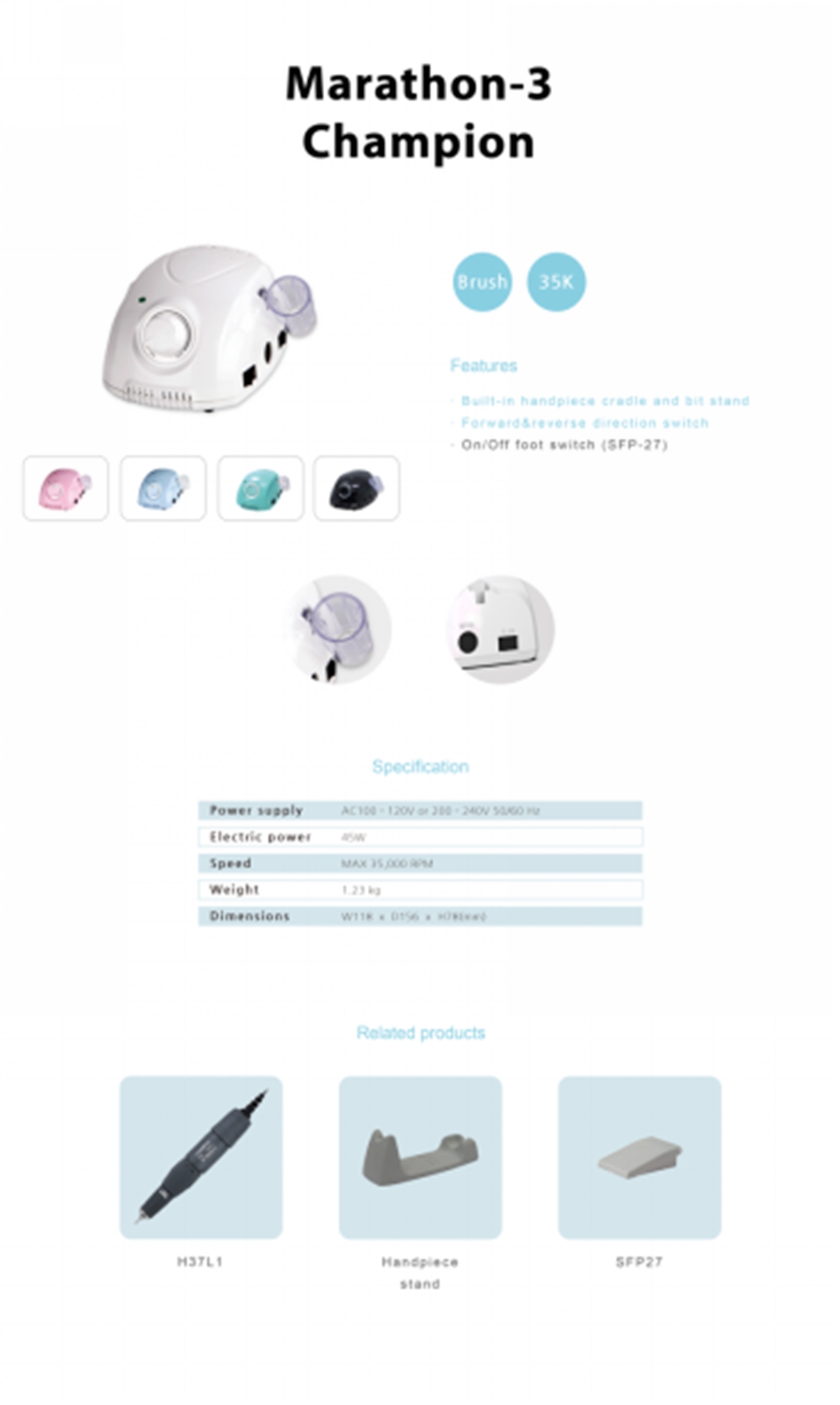

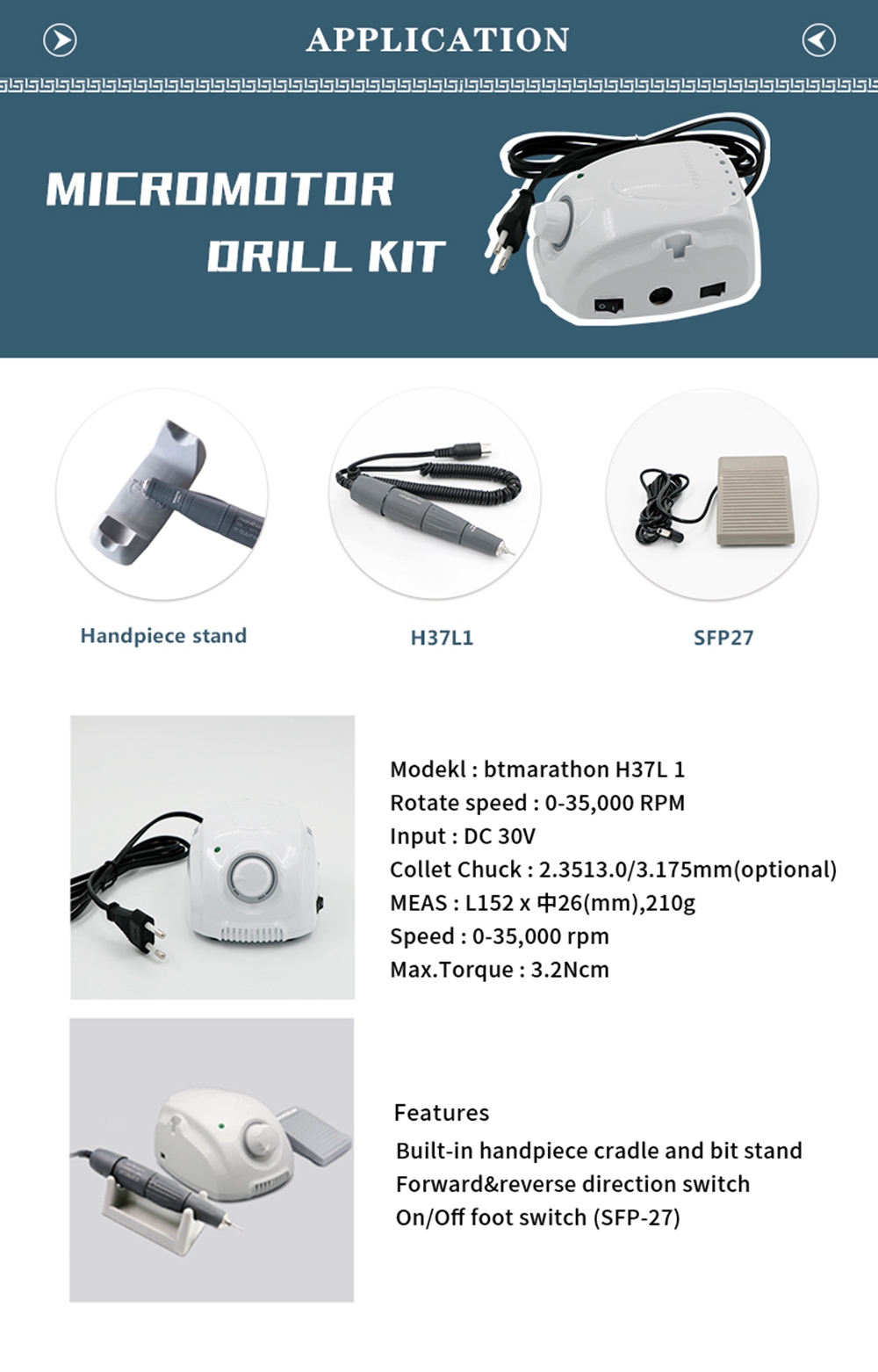

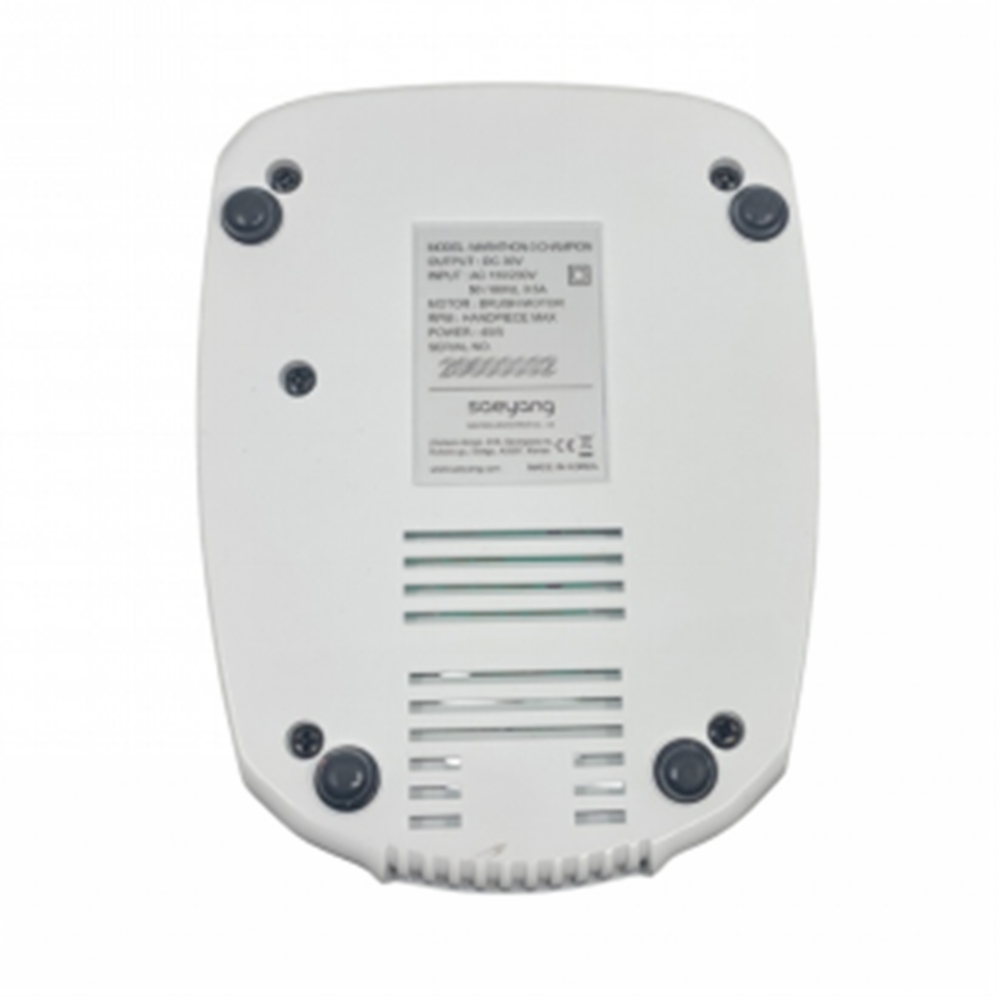

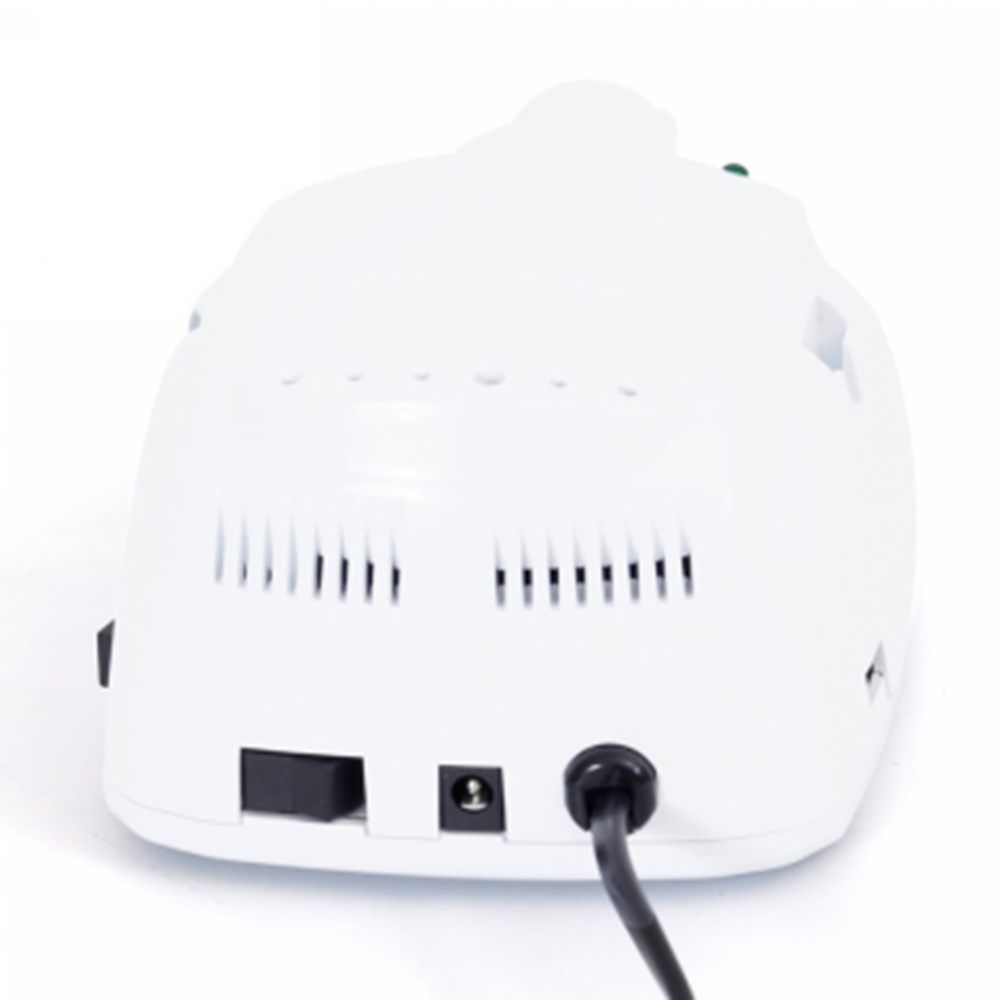

Seayang M3 champion

Compact and portable clinical micromotor for lab purposes.

FEATURES:

● Max speed: 35, 000rpm.

● 2.9 Ncm, 45W.

● Compact and portable size.

● Continous variable speed control.

● On/Off foot switch.

● One- touch change of the driving direction for efficient operation.

● No noise, vibaration or heat after a long hours of operation, ensuring smooth.

● Possible to attach a Contra.

● Angle of straight handpiece for a desired purpose.

● Straight handpiece(ES-6) or Contra.

● Angle can be combined with E type Motor optionally.

CONTENTS:

● 1 Kit including Marathon M3 Clinical Control Kit/Control box.

Spesifikasi Micromotor Saeyang M3 Champion

Built-in handpiece cradle and bit stand;

forward & reverse direction switch;

on/off foot switch (SFP-27)

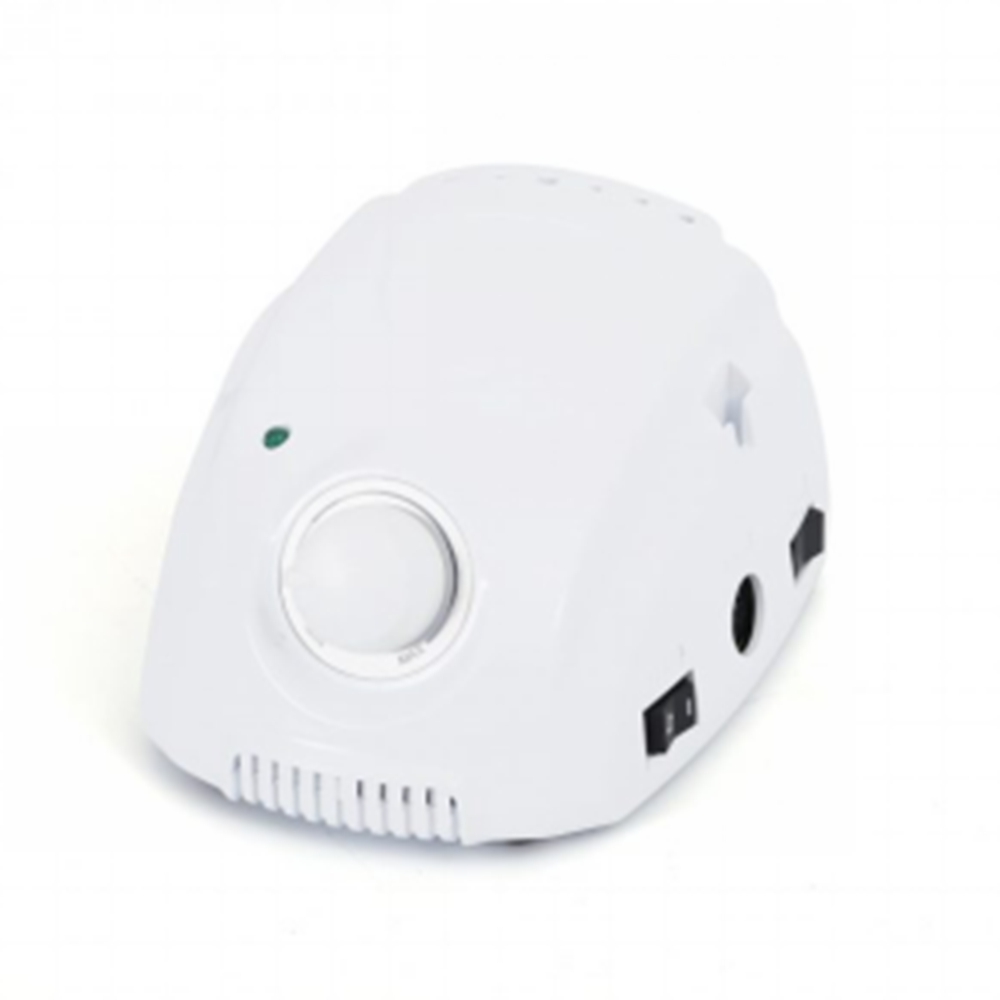

Spesifikasi kotak kontrol:

Low noise, Good speed stability, Small vibration, High torque

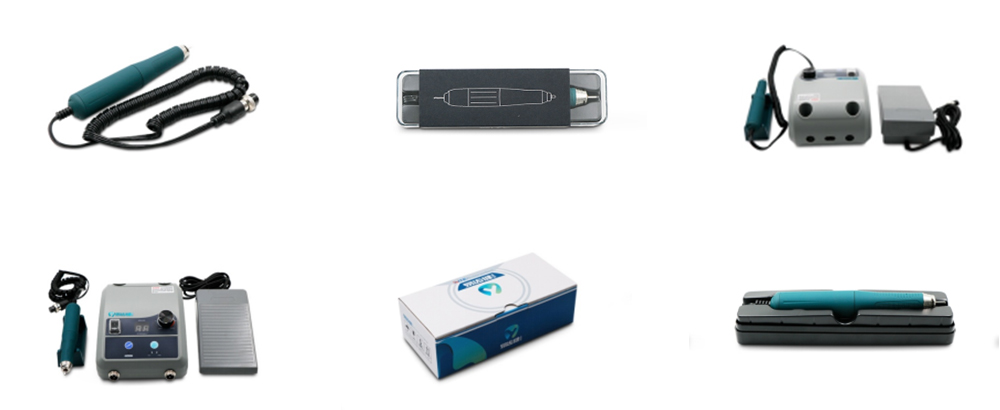

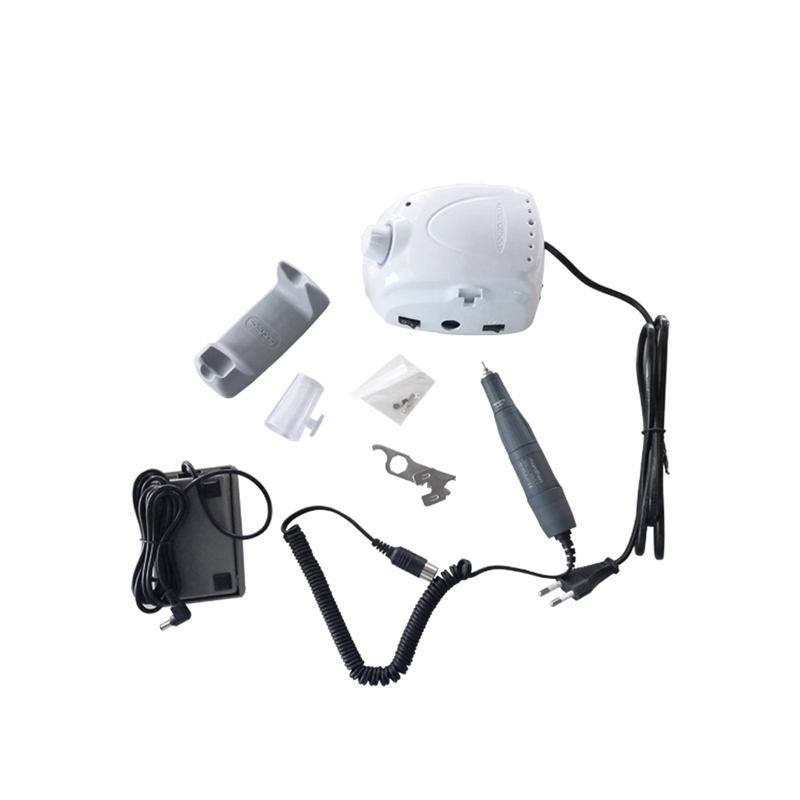

Laboratory Brush micromotor
Non-stage speed dialing system.
Protective plastic cover.
Powerful control box.
Forward & reverse switch.
Compact and portable size
Continuous variable speed control.On/off foot switch.

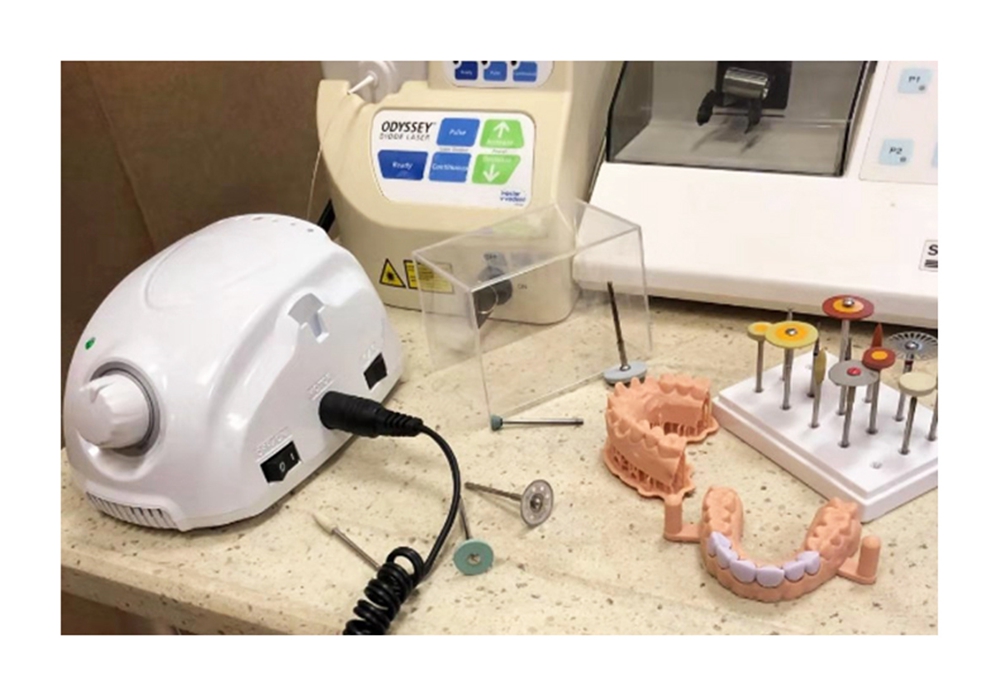

YICH dental technician grinding machine adopts high-speed brushless hollow cup motor. Compared with the traditional carbon brush motor, the speed is higher, the vibration is smaller, and the noise is lower. At the same time, there is no need to replace the carbon brush, which is convenient to use. The main shaft of the handle adopts the 103 dual-card structure, which has stronger clamping force, higher concentricity, and lower sound than the internal spring single-card and ordinary 102 dual-cards on the market. Bare-handed operation can quickly change the tool, simple operation, and greatly improve work efficiency. The mainframe control panel can achieve 50,000 rpm stepless speed control, which can be adjusted manually or by pedal, which is tailor-made for the dental market.

Rotation speed is 50000RPM

Specification

Power supply AC100-120 or-240/50/60HZ

Electric power 45W

Speed Max 50000rpm

Dimensions W118*D156*H75mm

Model YICH

Rotate speed 0-50000rpm

Input 220V/50HZ or 110V/60HZ

Output DC 0-32V.0.5A

Collet Chuck 2.35/3.0/3/175mm（optional）

Meas L154*W115*H80

NW: 2KG

Weight: 3.920kg
